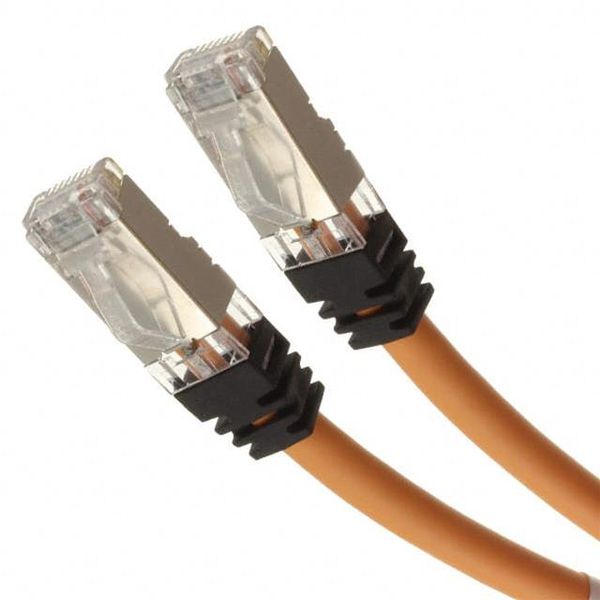

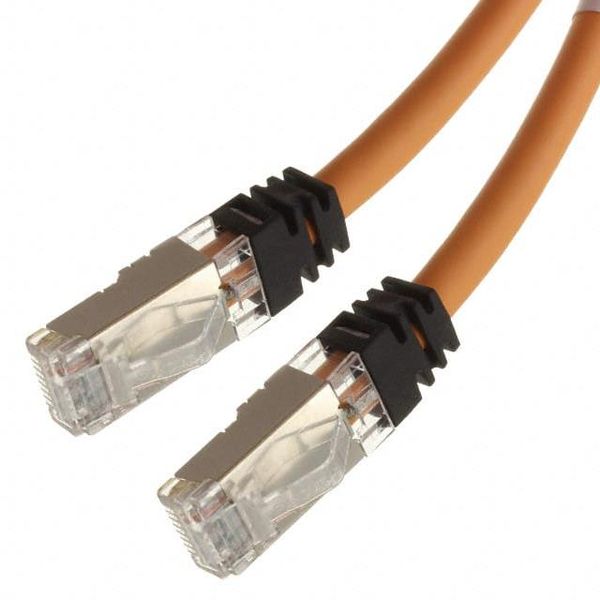

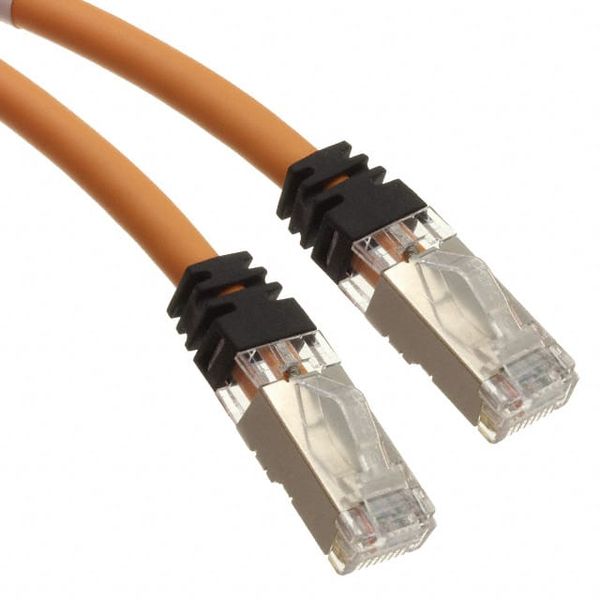

STP6X12MOR Panduit

2 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. NOTES: **1. SEE CURRENT CATALOG FOR VARIOUS APPLICATIONS TWIST TIE AND TO INDICATE COLOR AND OR PACKAGE QUANTITY. 2. SEE CATALOG FOR A COMPLETE LIST OF PARTS APPLICABLE FOR USE WITH THIS PART. 3. TERMINATED WITH (8 POSITION) SHIELDED MODULAR PLUGS AT BOTH ENDS PER T568B. 4. CONSTRUCTED WITH 26AWG STRANDED CAT6A FULLY SHIELDED, TWISTED PAIR LSZH/CM S/FTP PATCH CABLE. 5. NOMINAL CABLE JACKET DIAMETER IS 0.248 IN (6.30MM). 6. MATERIALS: PLUG: POLYCARBONATE PLUG SHIELD: PLATED CARTRIDGE BRASS CABLE SHIELD: ALUMINUM BOOT: TPE B B CABLE COLORS ** = COLOR INTERNATIONAL GRAY IG BLACK BL STRAIN RELIEF BOOT BLUE BU RED RD SHIELD YELLOW YL IDENTIFICATION LABEL GREEN GR ORANGE OR TANGLE-FREE LATCH S6 VIOLET VL PASTEL BLUE PB PLUG POSITION 1 SHIELDED T568B WIRING SCHEME MODULAR PLUG POSITION: CABLE WIRE: PLUG SEE SHEET 2 FOR PATCH CORD 1 WHITE/ORANGE LENGTHS AND PART NUMBERS 2 ORANGE 3 WHITE/GREEN PART NUMBER 4 BLUE 5 WHITE/BLUE STP6X** 6 GREEN TITLE 7 WHITE/BROWN 8 BROWN TX6A 10GIG SHIELDED PATCH CORDS (CM/LSZH) A A CUSTOMER DRAWING ITEM REVISION NAME M02085BA/28 DATASET FILE NAME M02085BA DC01/28A MATERIAL: UNLESS OTHERWISE SPECIFIED, 12 12-19-17 MDJR MATO SRSE ADDED PASTEL BLUE COLOR. 02085-01 DIMENSIONAL TOLERANCES ARE: IN mm SEE NOTE 6 .X .XXX .010 .3 11 9-30-15 BJN JAV TMBA UPDATED 02085-01 .XX ANGLES .03 .8 DRAWING NUMBER: THIRD ANGLE 10 4-25-14 BJN JSP EJH REVISED & REDRAWN PREVIOUS REVISIONS REMVD FOR CLARITY 02085-01 PROJECTION 02085-01 DRAWN BY DATE CHK SCALE SIZE REV DATE BY CHK APR DESCRIPTION ECN MDJr 8-29-02 CEF NONE SHT 1 OF 2 A 2 1 D10100DA/142 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. TX6A 10GIG SHIELDED PATCH CORDS PANDUIT PANDUIT MIN. CABLE MIN. CABLE PART NUMBER PART NUMBER LENGTH LENGTH STP6X2** 2 FT. STP6X0.5M** 0.5 METER STP6X3** 3 FT. STP6X1M** 1 METER JACKET STP6X4** 4 FT. STP6X1.5M** 1.5 METER STP6X5** 5 FT. STP6X2M** 2 METERS BRAID STP6X6** 6 FT. STP6X2.5M** 2.5 METER B B STP6X7** 7 FT. STP6X3M** 3 METERS FOIL CONDUCTOR WIRE STP6X8** 8 FT. STP6X4M** 4 METERS STP6X9** 9 FT. STP6X5M** 5 METERS STP6X10** 10 FT. STP6X6M** 6 METERS STP6X11** 11 FT. STP6X7M** 7 METERS 4X TWISTED STP6X12** 12 FT. STP6X8M** 8 METERS PAIR INSULATION STP6X13** 13 FT. STP6X9M** 9 METERS STP6X14** 14 FT. STP6X10M** 10 METERS STP6X15** 15 FT. STP6X15M** 15 METERS CROSS-SECTIONAL VIEW OF CABLE STP6X16** 16 FT. STP6X20M** 20 METERS STP6X17** 17 FT. STP6X25M** 25 METERS STP6X18** 18 FT. STP6X30M** 30 METERS STP6X19** 19 FT. STP6X35M** 35 METERS PART NUMBER STP6X** STP6X20** 20 FT. STP6X40M** 40 METERS TITLE STP6X25** 25 FT. TX6A 10GIG SHIELDED PATCH CORDS (CM/LSZH) STP6X30** 30 FT. A A CUSTOMER DRAWING STP6X35** 35 FT. ITEM REVISION NAME M02085BA/28 STP6X40** 40 FT. DATASET FILE NAME M02085BA DC01/28A MATERIAL: UNLESS OTHERWISE SPECIFIED, 12 12-19-17 MDJR MATO SRSE SEE SHEET 1 FOR REVISION HISTORY 02085-01 DIMENSIONAL TOLERANCES ARE: IN mm SEE NOTE 6 .X .XXX .010 .3 11 9-30-15 BJN JAV TMBA SEE SHEET 1 FOR REVISION HISTORY 02085-01 .XX ANGLES .03 .8 DRAWING NUMBER: THIRD ANGLE 10 4-25-14 BJN JSP EJH SEE SHEET 1 FOR REVISION HISTORY 02085-01 PROJECTION 02085-01 DRAWN BY DATE CHK SCALE SIZE REV DATE BY CHK APR DESCRIPTION ECN MDJr 8-29-02 CEF NONE SHT 2 OF 2 A 2 1 D10100DA/14
