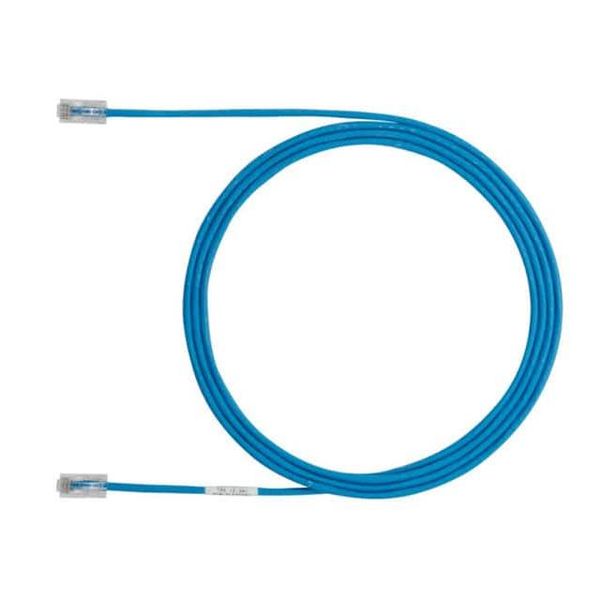

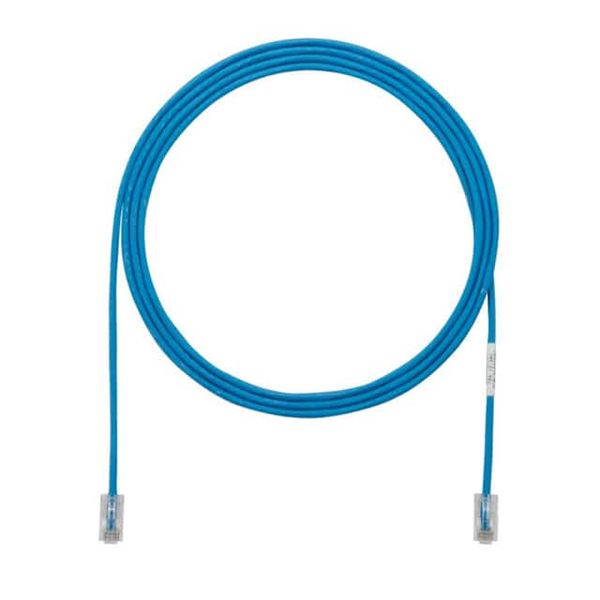

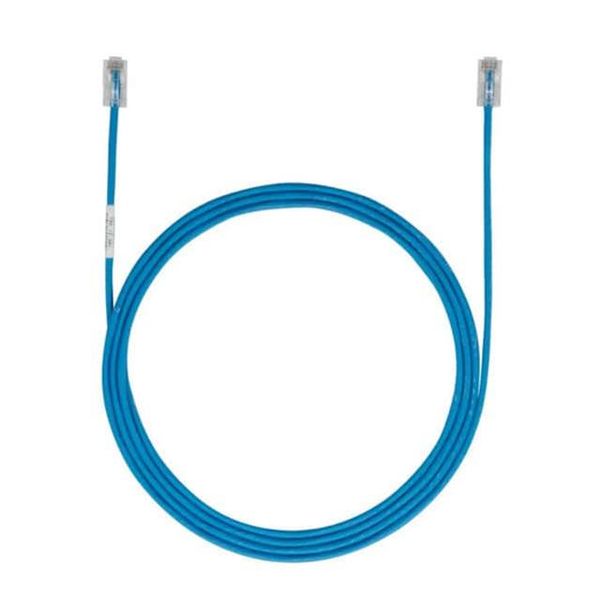

Category 5e Performance SD UTP Patch Cords S P e C ifi C a T ion SH ee T specifications Category 5e/Class D, UTP, small diameter patch cords shall be Category 5e SD UTP Patch Cords constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance modular Feet: UTP28CH* plugs. Patch cords shall be offered in multiple lengths and colors Meters: UTP28CH**M for design flexibility. *For lengths 1 to 50 feet (increments of one foot), and 55 to 150 feet (increments of five feet), change the length designation in the part technical information number to the desired length. Category 5e/ Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 **For lengths 0.5 to 10 meters (increments of Class D channel electrical performance requirements for all frequencies from 1 to 100 MHz half meter), 11 to 20 meters (increments of and component Note: These patch cords utilize 28 AWG conductors which do not meet the 22 one meter), and 25 to 50 meters (increments performance: to 26 AWG conductor size of patch cable referenced in ANSI/TIA-568-C.2, of five meters), change the length designation resulting in an increased attenuation de-rating value of 1.9. Supports 96 meter in the part number to the desired length. channels that include 90 meter permanent links. For standard cable colors other than Cable diameter: 0.149 in. (3.8mm) nominal Off White, add suffix BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR FCC and Meets ANSI/TIA/EIA-1096-A contacts plated with 50 microinches of gold for (Orange), GY (Gray), PK (Pink), or VL (Violet). ANSI compliance: superior performance For example, the part number for a blue, IEC compliance: Meets IEC 60603-7 15 foot patch cord is UTP28CH5BU. The PoE compliance: Meets IEEE 802.3af and IEEE 802.3at for PoE applications in bundle sizes up part number for a blue, 5 meter patch cord to 40 cables is UPT28CH5MBU. Operating 14F to 140F (-10C to 60C) temperature: Storage temperature: -40F to 158F (-40C to 70C) Plug housing: UL94V-0 rated clear Polycarbonate Contacts: Gold plated phosphor bronze RoHS compliance: Compliant Flammability rating: CM/LSZH key features and benefits Smaller diameter, flexible Tight bend radius enables improved cable routing and cable design management in high density applications. Smaller cable diameter allows twice the amount of cables to be routed through cable managers and pathways compared to traditional Category 5e patch cable. Reduced cable diameter facilitates improved air flow, cooling, resulting in lower operating costs than traditional 24 AWG patch cables 100% performance tested for wire Confidence that each patch cord delivers critical electrical map, NEXT and return loss component level performance Centered de-embedded plug performs in center of ANSI/TIA-568-C.2 Category 5e component range, ensuring interoperability and optimum performance Integral pair manager Optimizes performance and consistency by reducing untwist at plug Patented tangle-free latch Prevents snags and provides easy release, saving time on frequent moves, adds, and changes Flexible stranded cable U/UTP stranded 28 AWG copper cable with a nominal diameter of 0.150 in. (3.8mm) allows for high density installations and superior panel cable management Identification Provides identification of performance level, length, and quality control number for future traceability Robust construction Plug contact plated with 50 microinches of gold and rated to 2500 mating cycles Variety of cable colors and lengths Meets individual length and color-coding requirements for greater system flexibility RJ45 plug lock-in device (optional) Secures plug into jack to prevent unauthorized removal of patch cord applications TX5e PLUS UTP 28AWG Patch Cords support the 155 Mb/s ATM, 622 Mb/s ATM following applications: Token ring 4/16 Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), Voice/data systems 1000BASE-T (Gigabit Ethernet) Voice over Internet Protocol (VoIP) www.panduit.comCategory 5e Performance SD UTP Patch Cords Component Drawing of Patch Cord Twist Tie Strain Relief Boot Identification Label Tangle-free Latch Modular Plug Plug Position One T 5 6 8 a w i r i n g s c h e m e Plug Position Cable Wire 1 White/Green 2 Green 3 White/Orange 4 Blue 5 White/Blue 6 Orange 7 White/Brown 8 Brown WOrldWide sUBsidiAries ANd sAles OFFiCes PANdUit CANAdA PANdUit eUrOPe ltd. PANdUit siNgAPOre Pte. ltd. PANdUit JAPAN PANdUit lA tiN AMeriCA PANdUit AUstrAliA PtY. ltd. Markham, Ontario london, UK republic of singapore t okyo, Japan guadalajara, Mexico ictoria, Australiav cs-cdn panduit.com cs-emea panduit.com cs-ap panduit.com cs-japan panduit.com cs-la panduit.com cs-aus panduit.com Phone: 800.777.3300 Phone: 44.20.8601.7200 Phone: 65.6305.7575 Phone: 81.3.6863.6000 Phone: 52.33.3777.6000 Phone: 61.3.9794.9020 For a copy of Panduit product warranties, log on to www.panduit.com/warranty for more information 2014 Panduit Corp. Visit us at www.panduit.com All rights reserved. Contact Customer Service by email: cs panduit.com CoSP232--WW-enG or by phone: 800.777.3300 4/2014
