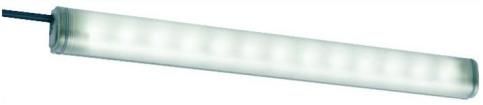

CL A LED Light Bar CLA-1S-Y Daylight, Amber CLA-2S-CN Natural White IP66G/67G/69K CLA-3S-CD CLA-6S-CN More than a diff usion LED light bar, it can be used in places like the food-processing industry with its protection rating of IP69, which can endure high-pressurized hot water washing. Bright, long lasting LEDs. o Suitable for food, beverage and pharmaceutical applications where high-pressure, 80 C high-temperature wash-downs are required. Also meets IP66/67 standards. The radiating temperature is reduced to 40 degrees or less (34% reduction in comparison to a 20W fl uorescent light), increasing environmental effi ciency. Seven lengths in the range from 100 to 1500mm to choose from, with three colors (Daylight, Natural White, Amber), and four types of attachments, including a magnet one, off ering a potential for various applications. o o The operating temperature range from -40 C to +60 C allows installation in sub-freezing temperatures, such as walk-in freezers. It is constructed with strong polycarbonate resin, which is resistant to shock. Corresponds to Europe s RoHS Directive. Obtained certifi cation for ECOLAB. Conforms to CE requirements. UL Listed (File No. E306141). LLLLLumionous Cuuummiiiiiiooonnooouuusss CCCCCCoooolorlllllllooorr With a high-intensity Illumination, it is suitable A 6800K daylight light bar at a distance of 50 cm for applications such as lighting-up processing from the center of irradiation has measured a machinery workspace or video inspection systems maximum brightness of 400lx. to help highlight more details, etc. CLA-CN (Natural White: 4800K) How to Order CLA1S-24-CD-30 Light Bar Length 1 : 100mm Cable Length 2 : 200mm CLA-CD (Daylight:6800K) Blank : 0.5m 3 : 300mm Luminous Color 30 : 3.0m 6 : 600mm -CD Daylight 9 : 900mm -CN Natural White 12: 1,200mm -Y (Amber 15: 1,500mm -Y is only available in 100mm and 300mm lengths. 154 CLA-Y (Amber) CLACLA Dimensions Dim A Dim B Dim D Dim E Model Standard Bracket Cable Specification AWG22/2 wire Name SZ-310AR Total Length Lighting Area Mounting Pitch CLA CLA1S 124 100 74 Fuse CLA2S 224 200 174 White 2 pcs. CLA3S 324 300 274 DC24V Brown CLA6S 624 600 574 Wiring Diagram CLA9S 924 900 874 290 CLA12S 1,224 1,200 1,174 390 4 pcs. CLA15S 1,524 1,500 1,474 490 Options Option Option Option Standard Rear Attachment Rear Attachment Side Attachment Side Attachment (M agnetic M ount) (S crew M ount) (CLB-24N Compatible) (Screw Mount) Model SZ-310ARM Model SZ-310AS Model SZ-310ASB Model SZ-310AR Specifi cations Luminous Rated Vibration Operating Rated Current Center Radiation Main Body Protection Model Mass Color Voltage Resistance Temperature Range Consumption (lx/50cm) Material Rating CLA1S -24 -CD Daylight 140 CLA1S -24 -CN Natural White 104mA 80g CLA1S -24 -Y Amber 78 CLA2S -24 -CD Daylight 208mA 270 130g CLA2S -24 -CN Natural White CLA3S -24 -CD Daylight 400 CLA3S -24 -CN Natural White 240mA 180g o o CLA3S -24 -Y Amber 220 DC 24V 2 -40 C - +60 C 19.6 m/s Polycarbonate IP66/67/69K (Polarized) (RH 90% or less) CLA6S -24 -CD Daylight 480mA 650 340g CLA6S -24 -CN Natural White CLA9S -24 -CD Daylight 720mA 810 500g CLA9S -24 -CN Natural White CLA12S -24 -CD Daylight 960mA 890 660g CLA12S -24 -CN Natural White CLA15S -24 -CD Daylight 1,200mA 945 820g CLA15S -24 -CN Natural White 155
