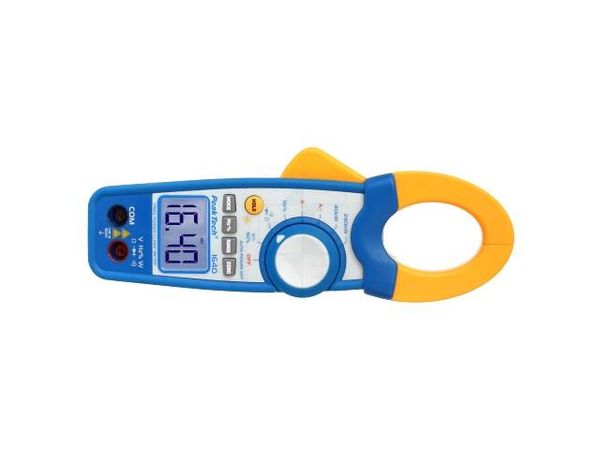

P 1640 PEAKTECH

Name: P 1640
Brand: PEAKTECH
SKU: P1640_PEAKTECH
Availability: InStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	P 1640
Manufacturer:	PEAKTECH
Category:	Clamp Multimeters & Accessories
Description:	AC/DC digital clamp meter; Øcable: 35mm; Sampling: 2x/s; I DC: 1kA
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 143.6778 ea
Line Total: USD 143.68

Availability - 1
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

P 1640 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 143.6778
3 : USD 141.7227

Specifications

Manufacturer
PEAKTECH PEAKTECH

Product Category
Clamp Multimeters & Accessories Clamp Multimeters & Accessories

Category
Clamp Multimeters Accessories Clamp Multimeters Accessories

Kind Of Display Used
with a backlit, LCD 3,75 digit (3999) with a backlit, LCD 3,75 digit (3999)

Weight
300 g 300 g

Standard Equipment
test leads, cover, user\\\\s manual test leads, cover, user\\\\s manual

Measuring Instrument Features
automatic power - off, HOLD function (for holding display readout), auto and manual ranging automatic power - off, HOLD function (for holding display readout), auto and manual ranging

Conform To The Norm
EN61010 600V CAT III EN61010 600V CAT III

Ac Current Measuring Accuracy
(2 % + 5 digits) (2 % + 5 digits)

Resistance Measuring Accuracy
± (1 % + 4 digits) ± (1 % + 4 digits)

Sampling
2x/s 2x/s

Dc Voltage Measuring Accuracy
(0 , 8 % + 3 digit) (0 , 8 % + 3 digit)

Frequency Measuring Accuracy
± (1,5 % + 2 digits) ± (1,5 % + 2 digits)

Max. Diameter Of Measured Cable
35 mm 35 mm

Dc Current Measuring Accuracy
(1 , 8 % + 5 digits) (1 , 8 % + 5 digits)

True Effective Value Measurement
True RMS True RMS

Type Of Meter
AC/DC digital clamp meter AC/DC digital clamp meter

Continuity Test
acoustic indication, <100Ω acoustic indication, <100Ω

Measurement
AC voltage, DC voltage, frequency, DC current, resistance, AC current, continuity, power AC voltage, DC voltage, frequency, DC current, resistance, AC current, continuity, power

Ac Voltage Measuring Accuracy
(1 , 8 % + 5 digits) (1 , 8 % + 5 digits)

Dimensions
80x230x40mm 80x230x40mm

Ac Current Measuring Range
1 kA 1 kA

Resistance Measuring Range
400 Ohms , 4 kOhms hms , 40 kOhms hms , 400 kOhms hms , 40 MOhms 400 Ohms , 4 kOhms hms , 40 kOhms hms , 400 kOhms hms , 40 MOhms

Dc Current Measuring Range
1 kA 1 kA

Dc Voltage Measuring Range
400 V , 600 V , 4 V , 40 V , 400 mV 400 V , 600 V , 4 V , 40 V , 400 mV

Ac Voltage Measuring Range
600 V , 400 V , 400 mV , 4 V , 40 V 600 V , 400 V , 400 mV , 4 V , 40 V

Frequency Measuring Range
100kHz, 50kHz, 50Hz, 500Hz, 5kHz, 5Hz 100kHz, 50kHz, 50Hz, 500Hz, 5kHz, 5Hz

Test
0.3mA @1.5V 0.3mA @1.5V

Active Power Measurement
40 kW , 240 kW 40 kW , 240 kW

Power Supply
b A ttery 6LR61 9 V x1 b A ttery 6LR61 9 V x1

Battery/ Rechargeable Battery
battery 6LR61 9V x1 battery 6LR61 9V x1
