X-On Electronics has gained recognition as a prominent supplier of P 3340 Digital Multimeters across the USA, India, Europe, Australia, and various other global locations. P 3340 Digital Multimeters are a product manufactured by PEAKTECH. We provide cost-effective solutions for Digital Multimeters, ensuring timely deliveries around the world.

P 3340 PEAKTECH

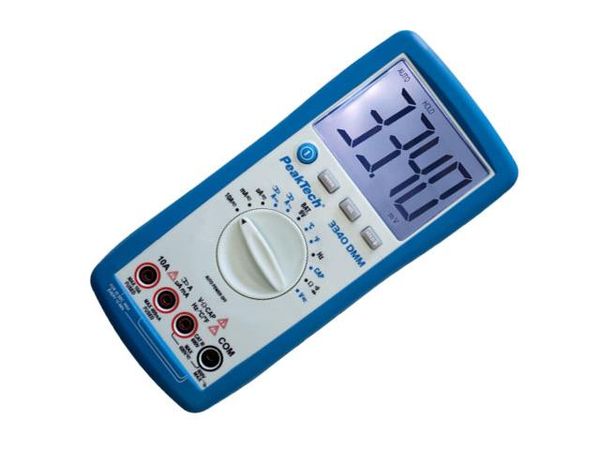

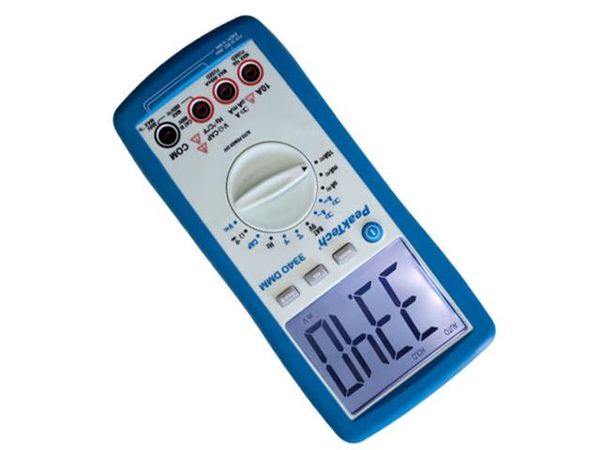

Name: P 3340
Brand: PEAKTECH
SKU: P3340_PEAKTECH
Availability: InStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	P 3340
Manufacturer:	PEAKTECH
Category:	Digital Multimeters
Description:	Digital multimeter; LCD 3,75 digit (4000), with a backlit
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 67.3995 ea
Line Total: USD 67.4

Availability - 1
Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

P 3340 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Wed. 25 Dec to Fri. 27 Dec

MOQ : 1
Multiples : 1

1 : USD 67.3995
3 : USD 66.2529

Specifications

Manufacturer
PEAKTECH PEAKTECH

Product Category
Digital Multimeters Digital Multimeters

Category
Digital Multimeters Digital Multimeters

Power Supply
1 b A ttery 9 V 1 b A ttery 9 V

Conform To The Norm
EN61010 600V CAT III EN61010 600V CAT III

Standard Equipment
Battery, Users Manual, Test Leads, K - Type Thermocouple Battery, Users Manual, Test Leads, K - Type Thermocouple

Kind Of Display Used
LCD 3,75 Digit (4000), With A Backlit LCD 3,75 Digit (4000), With A Backlit

Measuring Instrument Features
Automatic Power - Off, HOLD Function, Polarization Indicator, Overflow Indicator, Low Battery Indicator, 9V Battery Test, Current Test With A Clamp - On - Adaptor Up To 400A Automatic Power - Off, HOLD Function, Polarization Indicator, Overflow Indicator, Low Battery Indicator, 9V Battery Test, Current Test With A Clamp - On - Adaptor Up To 400A

Dc Voltage Measuring Range
400m/4/40/400/600 V 400m/4/40/400/600 V

Dc Voltage Measuring Accuracy
(0 , 5 % + 2 digits) (0 , 5 % + 2 digits)

Ac Voltage Measuring Range
4/40/400/600 V 4/40/400/600 V

Ac Voltage Measuring Accuracy
(1 , 2 % + 3 digits) (1 , 2 % + 3 digits)

Dc Current Measuring Range
400µ/4000µ/40m/400m/4/10 A 400µ/4000µ/40m/400m/4/10 A

Dc Current Measuring Accuracy
(1 % + 3 digits) (1 % + 3 digits)

Ac Current Measuring Range
400µ/4000µ/40m/400m/4/10 A 400µ/4000µ/40m/400m/4/10 A

Ac Current Measuring Accuracy
(1 , 5 % + 5 digits) (1 , 5 % + 5 digits)

Resistance Measuring Range
400/4k/40k/400k/4M/40 MOhms 400/4k/40k/400k/4M/40 MOhms

Resistance Measuring Accuracy
± (1 % + 2 digits) ± (1 % + 2 digits)

Capacitance Measuring Range
40n/400n/4µ/40µ/100 uF 40n/400n/4µ/40µ/100 uF

Capacitance Measuring Accuracy
± (3 % + 5 digits) ± (3 % + 5 digits)

Frequency Measuring Range
5/50/500/5k/50k/500k/5 MHz 5/50/500/5k/50k/500k/5 MHz

Frequency Measuring Accuracy
(1 , 2 % + 4 digits) (1 , 2 % + 4 digits)

Temperature Measurement Accuracy
± (3 % + 3 digits) ± (3 % + 3 digits)

Diode Test
0,3Ma, 1,5V 0,3Ma, 1,5V

Continuity Test
Acoustic Signal For R<50Ω Acoustic Signal For R<50Ω

Measurement
Continuity, Frequency, AC Voltage, DC Voltage, Capacitance, AC Current, DC Current, Resistance, Temperature Continuity, Frequency, AC Voltage, DC Voltage, Capacitance, AC Current, DC Current, Resistance, Temperature

Related Items
5790D, 5793D, 5794D, 5795D, 5797D, BKP60, EX871515, EX881602, EX881603, EX881605, PKT - PTA, PKT - PTF - 10, PKT - PTF - 20, PKT - PTF - 25, PKT - PTF - 30, PKT - PTF - 40, PKT - PTF - 50, PKT - PTF - 55, PKT - PTF - 56, PKT - PTF - 60, SE000, SE001, SE002, SE003, SE004, SE027, SE028, SE029, SE030, SE031, SE059, SE060, SE061, SE062, TESTO - 06020393, TESTO - 06020645, TESTO - 06024592, TESTO - 06024892, TESTO - 06280020, TESTO - 06281292, TESTO - 06287533, TP - 02, TP - 03, TP - 04, TP - 06, TP - 08, TP - 09, TP - 111, TP - 112, TP200, TP400, TP870, TP873, TP87 5790D, 5793D, 5794D, 5795D, 5797D, BKP60, EX871515, EX881602, EX881603, EX881605, PKT - PTA, PKT - PTF - 10, PKT - PTF - 20, PKT - PTF - 25, PKT - PTF - 30, PKT - PTF - 40, PKT - PTF - 50, PKT - PTF - 55, PKT - PTF - 56, PKT - PTF - 60, SE000, SE001, SE002, SE003, SE004, SE027, SE028, SE029, SE030, SE031, SE059, SE060, SE061, SE062, TESTO - 06020393, TESTO - 06020645, TESTO - 06024592, TESTO - 06024892, TESTO - 06280020, TESTO - 06281292, TESTO - 06287533, TP - 02, TP - 03, TP - 04, TP - 06, TP - 08, TP - 09, TP - 111, TP - 112, TP200, TP400, TP870, TP873, TP87

Type Of Meter
Digital Multimeter Digital Multimeter

Weight
380 g 380 g

Dimensions
92X195x38mm 92X195x38mm

Temperature Measuring Range
- 20 To 760 C - 20 To 760 C
