ML17-54/115/120 Pepperl & Fuchs

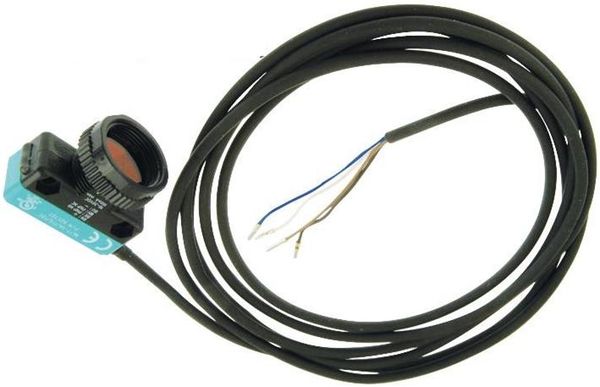

Retroreflective sensor with polarization filter ML17-54/115/120 Dimensions 29.3 15 10.2 3 13.9 Model Number Electrical connection ML17-54/115/120 Retroreflective sensor BN +UB with 2 m fixed cable Features WH Q Compact series in universal housing for standard applications Miniature design BU 0 V Front mounting with M18-threads or side mounting holes BK Q 360 high visibility LEDs Time-saving mounting with quick = Light on clamp system = Dark on Version with polarized filters detect Indicators/operating means shiny objects 1 1 Signal display yellow 3 2 Operating display green 3 Sensitivity adjustment 2 Refer to General Notes Relating to Pepperl+Fuchs Product Information. Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 4411 Singapore: +65 6779 9091 1 www.pepperl-fuchs.com fa-info us.pepperl-fuchs.com fa-info de.pepperl-fuchs.com fa-info sg.pepperl-fuchs.com Release date: 2014-08-04 14:04 Date of issue: 2014-08-04 905781 eng.xml 34.5 M18 x 1 24.1Retroreflective sensor with polarization filter ML17-54/115/120 Technical data Accessories General specifications OMH-ML17-EZ Effective detection range 0 ... 3.5 m Mounting bracket Reflector distance 50 ... 3500 mm Threshold detection range 5 m OMH-ML17 Reference target FE-RR1 reflector Mounting bracket Light source LED OMH-ML17-1 Light type modulated visible red light , 626 nm Polarization filter yes Mounting bracket Ambient light limit 10000 Lux Other suitable accessories can be found at Indicators/operating means www.pepperl-fuchs.com Operation indicator LED green Function indicator LED yellow, lights up with receiver lit Control elements sensitivity adjustment Electrical specifications Operating voltage U 10 ... 30 V DC , class 2 B Ripple max. 10 % No-load supply current I < 25 mA 0 Operating current 100 mA max per output Time delay before availability t 200 ms v Output Switching type light/dark on Signal output 2 PNP, short-circuit protected, reverse polarity protected , open collectors Switching voltage max. 30 V DC Switching current max. 100 mA Voltage drop U 2 V DC d Switching frequency f 500 Hz Response time 1 ms Ambient conditions Ambient temperature -20 ... 55 C (-4 ... 131 F) Storage temperature -20 ... 75 C (-4 ... 167 F) Mechanical specifications Degree of protection IP67 Connection 2 m fixed cable Material Housing ABS Optical face Acrylic Mass approx. 40 g Compliance with standards and directi- ves Standard conformity Product standard EN 60947-5-2:2007 IEC 60947-5-2:2007 Approvals and certificates UL approval cULus CCC approval CCC approval / marking not required for products rated 36 V Curves/Diagrams Characteristic response curve Offset Y mm 80 60 40 20 0 -20 -40 -60 -80 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 Distance X m x H85-2 FE-RR1 H50 H160 Refer to General Notes Relating to Pepperl+Fuchs Product Information. Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 4411 Singapore: +65 6779 9091 2 www.pepperl-fuchs.com fa-info us.pepperl-fuchs.com fa-info de.pepperl-fuchs.com fa-info sg.pepperl-fuchs.com y Release date: 2014-08-04 14:04 Date of issue: 2014-08-04 905781 eng.xml
