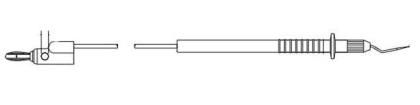

Model 5144 & 6235 SMD Test Probe FEATURES: The microtip is specially designed to probe SMD contacts. It features a stainless steel needle tip that is flexible to help prevent damage to the SMD leads. The microtip is curved to aid in probing of hard to reach areas. MATERIALS: Test Probe Removable Micro Tip Stainless steel. Removable Chuck Brass per QQ-B-626, Alloy 360, Hard. Finish: Chuck Nickel plated per QQ-N-290, Class 2, 200/300 microinches. Insulation: Chuck Nut and Probe Body Nylon. Color matches color of wire. Wire: 20 AWG, stranding 41 x 36, tinned copper, PVC insulated, 2.21 (.087) O.D. Stacking Banana Plug Spring Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT. Plug Body Brass per QQ-B-626, Alloy 360, Hard. Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches. Insulation: Polypropylene, molded to plug body and wire. Color matches color of wire. RATINGS: Operating Voltage: Hands free usage in controlled voltage environments: 1200 Vrms maximum. For CE compliance: not intended for hand-held use at voltages above 33 Vrms/70 Vdc. Current: 5 Amps Operating Temperature: +131F (+55C) Max. ORDERING INFORMATION: Replaceable Tips: Model 5144-48-0 48 (122cm) black test lead Model 5688: Standard Model: 5144-48-2 48 (122cm) red test lead Model 4172: Stainless-Steel Sharp Point Model: 6235 Set contains one each of model Model 5133: SMD Microtip, Stainless-Steel Sharp Point 5144-48-0 and 5144-48-2. Model 4988: Needle Stainless-Steel Sharp Point Model 6364: Set of tips For custom lengths, send email request to: custom pomonatest.com. All dimensions are in inches. Tolerances (except noted): .xx = .02 (,51 mm), .xxx = .005 (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport pomonatest.com) For Where to Buy information, visit the Pomona web site at www.pomonaelectronics.com Rev: 100 Page 1 of 1 D1094217 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Test Probes category: Click to view products by Pomona manufacturer: Other Similar products are found below : 6214 6474 815003 923832-BK-B P-KIT-1 KT-MS001 925250-R 923848-C 973368101 972318101 972318100 MXHQ87WJ3000 PK2- 5MM-102 382254 TAS90 VL1735/45 973368100 972327100 972327101 973995100 973995101 CT3982B-120 CT4386 PP023-1 PK1- 5MM-125 PK1-5MM-127 PP026-1 P6139B-PK10 PQ215 PQ219 PQ218 GE.3421 GE.3121 GE.1511 GE.1521 GE.2511 HVP15B TT- SI7002 4005 4011 4013 4014 4015 4016 4018 P TK-100 P TK-250/100 UTH05 402-IEC-RT 402-IEC-SW
