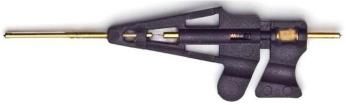

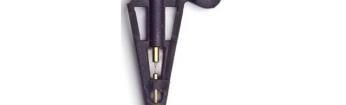

Model 72902, 72902-0, 72902-2, 72903 Micro SMD Grabber Test Clips, Holding Rod and Kit 72902, Micro SMD Grabber Test Clips Kit Features Kit includes: 12 grabbers (2 of each color) in black (model 72902-0), red (model 72902-2), yellow, green, blue and white. 6 black holding rods to reinforce connection positions during side-by- side measurements, model 72903. 12 black micro leads with 0.8mm female / 0.8mm male connectors. Grabbers are designed for easy attachment to SMD chips with pitches down to 0.008 (0.20mm). Thin yet durable design permits attachment with close spacing in tight areas. Insulated tip minimizes shorting on adjacent pins. Gold plating for low resistance connections. Model 72902 Micro SMD Grabber Test Clips Kit Ratings For CE Compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc. Maximum voltage for hands free use: 70 Vrms max. Ordering Information listed on page 2 of this datasheet. 72903, Holding Rod for Micro SMD Grabber Test Clip Features Holding rods to reinforce SMD Grabber (model 72902) connection positions during side-by-side measurements. Materials Black Polyamide Model 72903 Holding Rod Ordering Information listed on page 2 of this datasheet. USA: Sales: 800-490-2361 All dimensions are in inches. Tolerances (except noted): .xx = .02 (,51 mm), Technical Support: technicalsupport pomonatest.com .xxx = .005 (,127 mm). All specifications are to the latest revisions. Fax: 425-446-5844 Specifications are subject to change without notice. Registered trademarks are Europe: 31-(0) 40 2675 150 International: 425-446-5500 the property of their respective companies. Where to Buy: www.pomonaelectronics.com Copyright 2010 D1116249 Rev. 002 Page 1 of 2 Model 72902, 72902-0, 72902-2, 72903 Micro SMD Grabber Test Clips, Holding Rod and Kit 72902-0 & 72902-2, Micro SMD Grabber Test Clips Features Designed for easy attachment to SMD chips with pitches down to 0.008 (0.20mm). Thin yet durable design permits attachment with close spacing in tight areas. Insulated tip minimizes shorting on adjacent pins. Gold plating for low resistance connections. Easy attachment to standard test leads. Holding rods available to reinforce connection positions during side-by-side measurements (order Pomona model number 72903). Ratings For CE Compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc. Maximum voltage for hands free use: 70 Vrms max. Current: 1 maxi 500 mA Voltage: Less than 33 Vac/70 Vdc Temperature: -20C to +80C (-4F to +176F) Resistance: Less than 200 m Ordering Information Model: 72902 (Kit pictured on page 1) Model: 72902-* (Grabber pictured on the right) Model 72902-0 & 72902-2 (*=Color, Available Colors: -0 (Black), -2 (Red)) Micro SMD Grabber Test Clips Model: 72903 (Holding Rods on page 1, sold 10 per package) USA: Sales: 800-490-2361 All dimensions are in inches. Tolerances (except noted): .xx = .02 (,51 mm), Technical Support: technicalsupport pomonatest.com .xxx = .005 (,127 mm). All specifications are to the latest revisions. Fax: 425-446-5844 Specifications are subject to change without notice. Registered trademarks are Europe: 31-(0) 40 2675 150 International: 425-446-5500 the property of their respective companies. Where to Buy: www.pomonaelectronics.com Copyright 2010 D1116249 Rev. 002 Page 2 of 2
