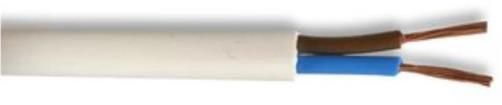

2182Y (Har. code H03VV-F2) Two-Core Round 300 / 300 V Application Power supply wire, suitable for indoor small electrical instrument, or general in portable tool Construction Conductor Material : Stranded plain annealed copper wire Insulation Material : PVC Colours : Blue and brown Sheath Material : PVC Physical Properties Operating Temperature : -15C to 70C Electrical Properties Voltage Test : Core to core : 1,500 V ac / 1 min Voltage Rating : 300 / 300 V www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/04/12 V1.12182Y (Har. code H03VV-F2) Two-Core Round 300 / 300 V Specification Table Insulation Sheath Nominal Conductor Nominal Nominal Minimum Current DC Description Stranding Inner Outer Bend Rating Part Number Resistance 2 (mm (mm )) Diameter Diameter Radius (A) ( / km) (mm) (mm) Cable, Flex, 2182Y, White, 2182Y-0.75MMWHT50M 0.75 mm, 50 m Cable, Flex, White, 0.75 mm, 2182Y-0.75MMWHT100M 100 m Cable, Flex, 2182Y, Black, 24 / 0.2 2.2 5.8 58 26 6 2182Y-0.75MMBLK50M 0.75 mm, 50 m (0.75) Cable, Flex, Black, 0.75 mm, 2182Y-0.75MMBLK100M 100 m Cable, Flex, 2182Y, Grey, 2182Y-0.75MMGRY100M 0.75 mm, 100 m Cable, Flex, 2182Y, White, 2182Y-0.5MMWHT50M 0.5 mm, 50 m Cable, Flex, 2182Y, White, 2182Y-0.5MMWHT100M 0.5 mm, 100 m Cable, Flex, 2182Y, Black, 16 / 0.2 2 5.4 54 39 3 2182Y-0.5MMBLK50M 0.5 mm, 50 m (0.5) Cable, Flex, 2182Y, Black, 2182Y-0.5MMBLK100M 0.5 mm, 100 m Cable, Flex, 2182Y, Grey, 0.5 2182Y-0.5MMGRY100M mm, 100 m Dimensions : Millimetres Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/04/12 V1.1
