3183Y - 1.5MM AGBLUE Pro Power

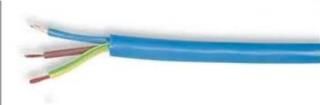

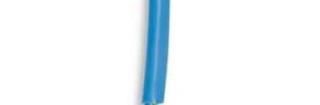

Arctic Grade 3 Core Mains Flex 3183YAG Yellow Features: Plain stranded copper conductors, blue, brown, green / yellow insulated Sheathed overall in arctic grade PVC Suitable for outdoor applications and where flexibility is required at sub-zero temperatures. (cold bend test temperature -40C) Voltage rating : 300 / 500 V Blue Operating temperature : -20C to +70C This range of cables is manufactured to satisfy a requirement for use at low temperatures (cold bend test temperature -40C), or where greater flexibility is required at nominal temperatures 2 3 cores 2.5 mm flexible plain annealed copper conductors, (construction as 1), type 8 (arctic grade) PVC sheathed to 10.25 mm nominal diameter Voltage drop per ampere per metre : 18 mV (single phase) If cables are used at a temperature in excess of 35C, then a correction factor must be applied to ascertain the current rating Related Specifications: BS 6360 - Copper conductors in cables and cords BS 6746 - PVC insulation and sheath of electric cables Outside Diameter Secondary Current Reel Length Reel Length Conductor Conductor Insulation Rating (Metric) (Imperial) Part Number Make-Up SA Area Colour (A) Minimum Maximum (m) (ft) Yellow 3183Y - 1.5mm Agyell 30 / 0.25 1.5 mm 15 8 9.8 Blue 3183Y - 1.5mm Agblue 100 328 Yellow 3183Y - 2.5mm Agyell 50 / 0.25 2.5 mm 20 9.6 12 Blue 3183Y - 2.5mm Agblue 30 / 0.25 1.5 mm 15 8 9.8 - - 3183Y - 1.5mm Agyell Yellow 50 / 0.25 2.5 mm 20 9.6 12 - - 3183Y - 2.5mm Agyell 30 / 0.25 1.5 mm 15 8 9.8 - - 3183Y - 1.5mm Agblue Blue 50 / 0.25 2.5 mm 20 9.6 12 - - 3183Y - 2.5mm Agblue 30 / 0.25 1.5 mm 15 8 9.8 - - 3183Y - 1.5mm Agorn Orange 50 / 0.25 2.5 mm 20 9.6 12 - - 3183Y - 2.5mm Agorn Dimensions : Millimetres (Unless Specified) Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 21/04/12 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
