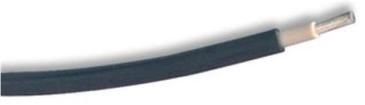

Solar Cables Single core cables, for photovoltaic and solar system use, elastomeric compound insulated and sheathed. Flame retardant, halogen free and low smoke flexible cables for fixed laying, lifetime testing 20.000 h/120C Characteristics: Applications : Cable suitable for the interconnection of the various elements of photovoltaic systems Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against Ozone, U V rays, oils, moistured and weather inclemencies Suitable for use at an ambient temperature up to 90C (120C overland) and tested according to: TUV-Rheinland 2 pfg 1169/08.2007 standard The estimated lifetime of these cables is at least 25 years Sheath colour : Black, red Operating temperature : -40C 90C on the conductor Overload temperature : 120C on the conductor Expected lifetime : > 25 Years Rated voltage : 1,800 V dc Maximum temperature in case of short circuit : 250C on the conductor (maximum duration 5 s) Minimum bending radius : 4 outer diameter of the cable Minimum installation temperature : -25C 2 Maximum laying stress during installation : 50 N / mm Dimension Table Max. of Insulation Sheath Outer Max. Cond. Indicative Size Copper Wires Thickness Thickness Diameter Resistance at 20C Cable weight 2 mm mm mm mm mm ohms / km kg / km 1 4 0.8 5.5 5.09 62 031 1 6 0.9 6.3 3.39 85 0.7 1 10 7.5 1.95 135 0,41 1 1 16 8.5 1.24 200 Part Number Table Description Part Number Cable, Solar, Black, 4 mm, 100 M CS0001A100 Cable, Solar, Black, 6 mm, 100 M CS0002A100 Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. pro-POWER is the registered trademark of the Group. Premier Farnell plc 2011. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk 23/10/11 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
