7001799 Pro Power

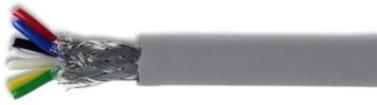

Multicore Cables Standard - Screened Features: This ministry of defence standard details requirements of small multicore cables having PVC and polyethylene insulated cores, with or without screening, and a PVC sheath. Cables to this standard are intended for use in similar applications to those detailed in DEF STAN 61 - 12 (Part 4) AS in DEF STAN 61 - 12 (Part 4), none of the cables listed in this standard are intended to be used as power cables or for the direct connection of equipment to mains power supplies Low tension (LT) cores, which is 16 / 0.2 mm and having PVC insulation Low tension cores are suitable for operation at voltage up to 440 V (rms) and frequencies up to 1,600 Hz The cables having PVC insulation and sheath can be offered with either general purpose or heat resisting grades of PVC The standard types are suitable for a maximum (conductor) operating temperature of 70C, whilst those manufactured with heat resisting PVC are suitable for a maximum (conductor) operating temperature of 85C Specifications: Voltage Rating : 440 V (RMS) Maximum Current Per Core : 2.5 A Maximum Operating Temperature : 70C Sheath colour : Grey Conductor Composition : 16 / 0.2 mm 2 Conductor Area : 0.5 mm per core Conductor Resistance at 20C : 40.1 / km Specification Table Number of Cores Nominal Diameter Length (m) Part Number 25 7001563 4 7.3 100 7000120 25 7002024 6 8.3 100 7001799 25 7000123 12 11 100 7001414 18 12 100 MCCP-1620T-N18C-EXX-64 Dimensions : Millimetres (Unless specified) Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 04/04/12 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
