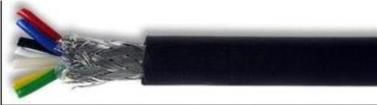

16 - 2 - C Series Specification Table Description : Small Multi-core Cable, 16-2-2C to Def Stan 61-12 (Part 5) 2 Conductors : 0.5 mm (16/0.2 mm) tinned annealed copper bunch, meeting the requirements of BS 6360, class 5 : Maximum resistance (completed cable) at 20 C : 40.1 /km Insulation : Type TI 1 PVC compound to BS EN 50363 : Minimum radial thickness : 0.35 mm : Minimum core diameter : 1.75 mm : Maximum core diameter : 1.9 mm Lay Up : 2 cores red and blue : Polyester tape Screen : 0.2 mm tinned annealed copper braid : Minimum filling factor : 0.7 (91 % coverage) Sheath : Type 6 PVC compound to BS 7655 : Minimum radial thickness at any point : 0.6 mm : Minimum overall diameter : 6.1 mm : Maximum overall diameter : 6.9 mm Service Data : For local interconnection between instruments and electronic equipment : Not suitable for direct connection to mains power supplies : Maximum working voltage : 440 V ac rms : Maximum (conductor) operating temperature : 70 C : Nominal capacitance, core to core : 130 pF/m : Core to screen : 220 pF/m : Approximate mass/unit length : 74 kg/km Pat Number Table Description Part Number Cable, DEF 16-2-2C, 2 Cores, 25 m 860008 25M Cable, DEF 16-2-2C, 2 Cores, 100 m 860008 100M www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 17/12/11 V1.116 - 2 - C Series Specification Table Description : Small Multi-core Cable, 16-2-3C to Def Stan 61-12 (Part 5) 2 Conductors : 0.5 mm (16/0.2 mm) tinned annealed copper bunch, meeting the requirements of BS 6360, class 5 : Maximum resistance (completed cable) at 20 C : 40.1 /km Insulation : Type TI 1 PVC compound to BS EN 50363 : Minimum radial thickness : 0.35 mm : Minimum core diameter : 1.75 mm : Maximum core diameter : 1.9 mm Lay Up : 3 cores red, blue and green : Polyester tape Screen : 0.2 mm tinned annealed copper braid : Minimum filling factor : 0.7 (91 % coverage) Sheath : Type 6 PVC compound to BS 7655 : Minimum radial thickness at any point : 0.6 mm : Minimum overall diameter : 6.4 mm : Maximum overall diameter : 7.2 mm Service Data : For local interconnection between instruments and electronic equipment : Not suitable for direct connection to mains power supplies : Maximum working voltage : 440 V ac rms : Maximum (conductor) operating temperature : 70 C : Nominal capacitance, core to core : 120 pF/m : Core to screen : 220 pF/m : Approximate mass/unit length : 81 kg/km Pat Number Table Description Part Number Cable, DEF 16-2-3C, 3 Cores, 25 m 860155 25M Cable, DEF 16-2-3C, 3 Cores, 100 m 860155 100M www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 17/12/11 V1.1
