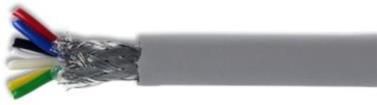

Defence Standard Part4 Screened Type C Construction: Conductor Tinned Copper Construction 0.055mm (7/0.1mm) Insulation Type 2 PVC compound to BS 7655-3.2 Screen 0.1mm tinned annealed copper braid (91% coverage) Sheath Type 6 PVC compound to BS 7655-4-2 Sheath Colour Black or Grey Standards / Conformances: Def Stan 61-12 (Part 4), where applicable Electrical Characteristics: Rated Voltage (V) : 250V AC RMS Max. Conductor DC Resistance at 20C (/Km) : 384 Min. Insulation Resistance of one core at 20C (M/Km) : 140 Operating Temperature (C) : 70 Physical Characteristics: Insulation Diameter Nominal Overall Diameter (mm) (mm) Cores Min. Max. Min. Max. 2 0.65 0.75 2.5 3.0 3 0.65 0.75 2.7 3.2 4 0.65 0.75 2.9 3.4 6 0.65 0.75 3.3 3.8 9 0.65 0.75 3.9 4.4 12 0.65 0.75 4.1 4.6 15 0.65 0.75 4.9 5.4 18 0.65 0.75 25 0.65 0.75 6.0 6.6 36 0.65 0.75 6.6 7.2 50 0.65 0.75 7.7 8.3 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 21/05/14 V1.1Defence Standard Part4 Screened Type C Core Colours: No. of Cores Identification Colours 2 3 1- red, 2-blue, 3- green, 4- yellow, 5- white, 6- black, 7- brown, 8- violet, 9- orange, 4 10- pink, 11- turquoise, 12- grey, 13- red/blue, 14- green/red, 15- yellow/red, 6 16- white/red, 17- red/black, 18- red/brown, 19- yellow/blue, 20- white/blue, 9 21- blue/black, 22- orange/blue, 23- green/blue, 24- grey/blue, 25- yellow/green, 12 26- white/green, 27- green/black, 28- orange/green, 29- grey/green, 15 30- yellow/brown, 31- white/brown, 32- brown/black, 33- grey/brown, 18 34- yellow/violet, 35- violet/black, 36- white/violet 25 36 Centre: 1 Red, 2 Blue, 3 White. First layer: 4 Red, 5 Blue, (6, 7, 8, 9, 10, 11, 12) White. Second layer: 13 Red, 14 Blue, (15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28) 50 White. Outer layer: 29 Red, 30 Blue, (31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50) White. Part Number Table Description Part Number Cable, Scrn, 4Core, 7/0.1mm, 25m 860173 25M Cable, Scrn, 4Core, 7/0.1mm, 100m 860173 100M Cable, Scrn, 6Core, 7/0.1mm, 25m 860180 25M Cable, Scrn, 6Core, 7/0.1mm, 100m 860180 100M Cable, Scrn, 9Core, 7/0.1mm, 25m 860184 25M Cable, Scrn, 9Core, 7/0.1mm, 100m 860184 100M Cable, Scrn, 15Core, 7/0.1mm, 25m 860183-25M. Cable, Scrn, 15Core, 7/0.1mm, 100m 860183-100M Cable, Scrn, 25Core, 7/0.1mm, 25m 860128-25M Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 21/05/14 V1.1
