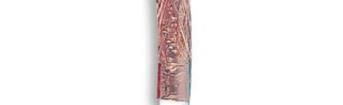

Coaxial Cable Description: Solid PACW, 5 cell, PE dielectric, Cu.Foil, PACW braiding 55% coverage, PVC sheath Application: For CATV/MATV, broadband, HDTV and satellite broadcasting transmission use Construction: Conductor: Material : Solid bare copper 1mm Dielectric: Material : 5 cell PE Nominal Inner Dia : 4.65mm Shielding: Material : Cu. foil 100% coverage Material : PACW braiding, 55% coverage Sheath: Material : PVC Nominal Outer Dia : 6.8mm Colour : Any Physical Properties: Minimum Bend Radius : 68mm Operating Temperature : -15C to +70C Electrical Properties: Nominal DC Resistance : 25/km Nominal Characteristic Impedance : 75 3 Nominal Capacitance : 55 2pF/minute Voltage Test : Core to Shielding : 1,000V AC/1 minute Nominal Velocity of Propagation : 81 to 87% www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 06/12/12 V1.0Coaxial Cable Min. Return Loss: (dB/100m) (MHz) 5 to 30 30 to 470 470 to 862 862 to 2150 (dB) 23 23 20 18 Max. Attenuation (dB/100m) (MHz) 5 50 100 200 460 (dB) 1.6 4.6 6.5 9.5 15 MHz 860 1,000 1,750 2,150 *** dB 19.5 21.5 29 32.5 *** Part Number Table Description Part Number Cable, Coaxial, S/A/SP, Black, 50m CF0003 BLACK 50M Cable, Coaxial, S/A/SP, Black, 100m CF0003 BLACK 100M Cable, Coaxial, S/A/SP, Black, 250m CF0003 BLACK 250M Cable, Coaxial, S/A/SP, White, 100m CF0003 WHITE 100M Cable, Coaxial, S/A/SP, White, 250m CF0003 WHITE 250M Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 06/12/12 V1.0
