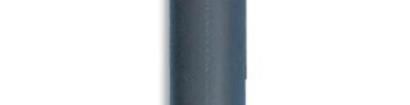

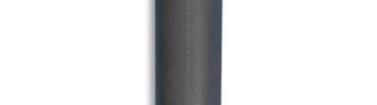

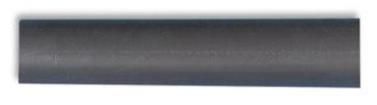

CTFC Series Heat Shrink Tubing Description: It is a flexible polyolefin heat-shrinkable tubing with an inner meltable adhesive lining. It is ideal for the environmental protection of electrical components and the sealing of connectors. Typical applications and environmental sealing for electrical components, wire breakouts and cable jackets. Features: High strength bonding. Moisture proof. Environmental sealing. 3:1 shrink ratio. Specifications: Operating Temperature Range : -30C to +80C Min. Shrink Temperature : +80C Min. Full Recovery Temperature : +115C Specification Table Inside Diameter Wall Thickness Nominal Recovered Meltable Wall Length Min. Expanded Max. Recovered Part Number After Heating Recovered After (m) as Supplied After Heating (W) Heating (D) (d) Black (W1) 3 1 CTFC-3/1-0-STK 1 0.5 6 2 CTFC-6/2-0-STK 9 3 1.35 0.6 CTFC-9/3-0-STK 12 4 1.5 0.7 1.2 CTFC-12/4-0-STK 18 6 1.7 0.8 CTFC-18/6-0-STK 24 8 1.95 CTFC-24/8-0-STK 1 39 13 2.1 CTFC-39/13-0-STK Dimensions : Millimetres (Unless Specified) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 24/05/13 V1.0CTFC Series Heat Shrink Tubing Performance Test Test Method Test Requirement Min. Tensile Strength ISO 37 9MPa Min. Ultimate Elongation ISO 37 200% Heat Shock 4 Hours at 150C Pass - no Dripping, Cracking or Flowing of Outer Wall Heat Ageing 168 Hours at 125C Low Temperature Flexibility 4 Hours at -55C Pass - no Cracking Min. Dielectric Strength IEC 243 12MV/m Min. Tensile Strength : 5MPa 24 Hours at 23C, ISO 37 Min. Ultimate Elongation : 200% Fluid Resistance Petrol 100 Octane Test Fluids Engine Oil (SAE 20W/50) Hydraulic Fluid (SAE J1703) Part Number Explanation: CTFC 3/1 0 Series Inside Diameter Colour Code Inside Diameter : Expanded as supplied/Recovered after heating. Colour Code : 0 = Black. Part Number Table Description Part Number Heatshrink, Adhesive, 3mm, Black, 1.2m CTFC-3/1-0-STK Heatshrink, Adhesive, 6mm, Black, 1.2m CTFC-6/2-0-STK Heatshrink, Adhesive, 9mm, Black, 1.2m CTFC-9/3-0-STK Heatshrink, Adhesive, 12mm Black, 1.2m CTFC-12/4-0-STK Heatshrink, Adhesive, 18mm, Black, 1.2m CTFC-18/6-0-STK Heatshrink, Adhesive, 24mm, Black, 1.2m CTFC-24/8-0-STK Heatshrink, Adhesive, 39mm, Black, 1.2m CTFC-39/13-0-STK Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 24/05/13 V1.0
