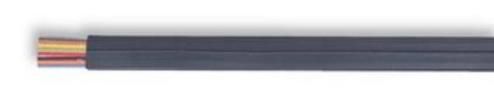

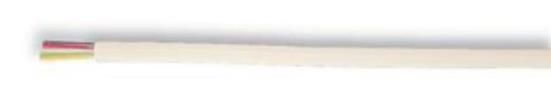

FCC-68 Data Cables Telecommunication Cable Features: 4, 6 and 8-core line cordage with 7 / 0.15 mm (26 AWG) - flat cable Western electric and FCC-68 style plugs application Plain copper conductors insulated in colour coded PVC and sheathed overall in PVC Normal colour coding to plug pin number. Nominal overall diameter of conductor : 0.45 mm Nominal overall diameter of conductor with insulation : 1 mm (maximum) Outer Sheath Colours Outer Sheath Colours GC5040 - Grey GC5043 - Grey GC5041 - Black GC5044 - Black GC5042 - White GC5045 - White Dimensions : Millimetres Dimensions : Millimetres Lay Up : 4 cores laid side by side (Black, Red, Green and Yellow) Lay Up : 6 cores laid side by side (White, Black, Red, Green, Yellow and Blue) Outer Sheath Colours Maximum Conductor Resistance at 20C : 166 / Km Minimum IR at 20C : 700 M GC5046 - Grey GC5047 - Black Dimensions : Millimetres Lay Up : 8 cores laid side by side (Blue, Orange, Black, Red, Green, Yellow, Brown and Grey) Maximum Conductor Resistance at 20C : 166 / Km Minimum IR at 20C : 700 M www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 17/04/12 V1.1FCC-68 Data Cables Telecommunication Cable Specification Table Number of Core Reel Length (m) Part Number GC5040 4 GC5041 GC5042 GC5043 100 6 GC5044 GC5045 GC5046 8 GC5047 Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 17/04/12 V1.1
