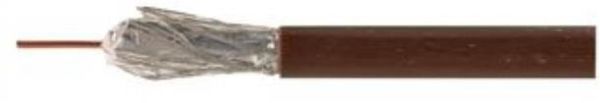

LCC100 BRN 50M Pro Power

Coaxial Cable Cable Description Electrical Characteristics Inner Conductor : BC CharacteristicImpedance :753 Conductor Dia. : 1.00mm 0.02 Capacitance : 54 pF/m Min.Break Strength : 376 N VelocityRatio :>82% Insulation : Foam P.E. DCR:InnerConductor :<26/km Insulation Dia. : 4.70mm 0.15 DCR:OuterConductor :<15/km Colour : Neutral Jacket Sparker : 5,000 VCA Centricity :85% Dielectric Strength : 1,500 VCA Adhesion : 6 to 60N 25mm Insulationresistance :>10,000Mkm Shielding : AL/P-Foil Diagram Foiloverlap :120% Outer Conductor : TC Wire Braid Coverage :55%3 Jacket : PVC/LSF/LSZH Outer Dia. : 6.55mm 0.3 Adhesion : 40 to 100N 50mm Mechanical Characteristics Min.Bending Radius: Installation : 23mm Repeated : 70mm Max.Pulling Tension : 460N Crushresistanceofcable :<1%(loadof700N) Rated Temperature Storage/Operating Temperature : -20C to +75C Outdoor Installation : -5C Part Number Table Description Colour Part Number Black LCC100 BLK 50M Cable Coax Digital LCC100, 50m White LCC100 WHT 50M Brown LCC100 BRN 50M Black LCC100 BLK 100M Cable Coax Digital LCC100, 100m White LCC100 WHT 100M Brown LCC100 BRN 100M Cable Coax Digital LCC100, 250m Black LCC100 BLK 250M Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change withoutnoticeandreplac esalldatasheetspreviously supplied.TheInformationsupplied isbelieved tobeaccuratebuttheGroupassumesnoresponsibility foritsaccuracyorcompleteness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptionsbasedoninformationincludedoromitted.LiabilityforlossordamageresultingfromanyrelianceontheInformationoruseofit(includingliabilityresultingfromnegligenceorwherethe Group was aware of the possibility of such loss or damage arising) is excluded.This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro-POWERistheregisteredtrademarkoftheGroup.PremierFarnellplc2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 22/06/16 V1.0X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
