PETAM1901BK200R Pro Power

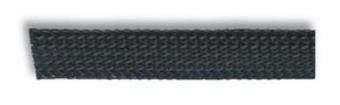

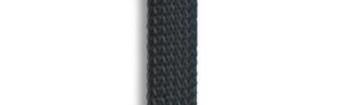

Braided Sleevings Medium Expansion Polyester Features: Imperial sizes High flexibility Self-extinguishing Supplied in black, on coils and reel The Sleeving is a tubular Polyester monofilament braided high expandable sleeving. Thanks to its high expansion of 1:3, the braided sleeving is very quick and easy to install, and enables low inventory costs since only a few references are required to cover a wide range of harness configurations. Application fields : Mechanical protection and organising of cable harnesses. Use in hostile conditions and in all industrial applications. Specification Table Application Range Packaging (m) Nominal Diameter Part Number Minimum Maximum Coil Length Reel Length 1/4 (6.4) 1/8 (3.2) 3/8 (9.5) 100 PETAM640BK100C 3/8 (9.5) 3/16 (4.8) 5/8 (15.8) PETAM950BK50C 50 1/2 (12.7) 1/4 (6.4) 3/4 (19.1) PETAM1270BK50C 400 3/4 (19.1) 1/2 (12.7) 1 1/4 (32) PETAM1901BK25C 1 1/4 (32) 3/4 (19.1) 1 1/2 (38.2) PETAM3180BK25C 1/4 (6.4) 1/8 (3.2) 3/8 (9.5) PETAM640BK400R 3/8 (9.5) 3/16 (4.8) 5/8 (15.8) 25 PETAM950BK300R 300 1/2 (12.7) 1/4 (6.4) 3/4 (19.1) PETAM1270BK300R 3/4 (19.1) 1/2 (12.7) 1 1/4 (32) PETAM1901BK200R 200 1 1/4 (32) 3/4 (19.1) 1 1/2 (38.2) PETAM3180BK200R Dimensions : Inches ( Millimetres) (Unless Specified) Technical Characteristics: Properties: Monofilament : Polyester 0.22 mm Expansion ratio : 1:3 Melting point : +250C Limiting oxygen index : 34% Operating temperature : -50C to +150C Withstand peaks : 220C Flame resistance : Passes flame resistant requirements of CEI 332-1 and FMVSS 302 (Type A) I2 according to NF F16-101 Fumes toxicity : Passes CEI 754-1 and CEI 754-2 Halogen free Fumes opacity : Passes NF C 20452 (polymer) Chemical resistance : Unaffected by most chemicals Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro -POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 03/04/12 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Wire Identification category. Click to view products by Pro Power manufacturer. Other Similar products are found below : PCM39 M200X042FPT M200X042UPT M200X050ACT M200X050AGT M200X080FQT M200X080UPT M200X100ACT M200X100AFT M200X100AIT M300X050ACT M300X050AET M300X050AFT M300X100ACT M300X100AET PDP6 PRL100BY18KIT PS10002WT H050X025H1TB H050X034H1T H050X034H1TB H050X044H1T H050X044H2T H050X044H3T H050X064H2T
