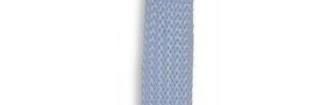

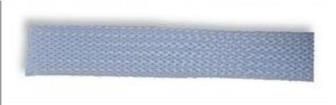

Braided Sleeving PET Expandable Description: This product is Polyester monofilament expandable sleeving. This expandable braided sleeving, made of lightweight but tough polyester mono filaments, offers an economical answer to installing, protecting, strengthening, enhancing and assembling over bundles, wires, cables and flexible piping. The push back effect of this product enables it to cover a wide range of sizes with only few references and allows for easy application. With continuous working temperatures of -50C up to +150C and resistance to most chemicals, it can be used in hostile conditions and is suitable for all industries. Moreover, it is self-extinguishing due to its braided construction. Specifications: Working temperature : -50C up to +150C Standard colours : Black, Grey Technical Characteristics: Standard Requirements Test Methods Physical Monofilament Polyester Size : 0.22 mm - Working temperature -50C up to +150C - Withstand peaks +220C - Melting point +250C - Flame requirements of: Flame resistance Pass CEI 332-1 and FMVSS 302 (Type A). I2 according to NF F16-101. Chemical Oxygen index limit 34% - CEI 754-1 and CEI 754-2. Fume toxicity Pass Halogen-free. Fume opacity Pass NF C 20452 (Polymer). Chemical resistance Unaffected by most chemicals - Cutting: Couplers or lengths. Packaging: Coils fastened with ties under plastic wrapping. Dimension Data Reference Size Range of use advised (mm) Expansion max. (**) (mm) Weight (*) g / 100m PET3 3 1 up to 5 7 395 PET4 4 2 up to 7 9 445 PET5 5 3 up to 9 12 515 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 06/04/16 V1.1Braided Sleeving PET Expandable Reference Size Range of use advised (mm) Expansion max. (**) (mm) Weight (*) g / 100m PET6 6 4 up to 11 14 580 PET8 8 5 up to 12 17 770 PET10 10 7 up to 15 22 900 PET12 12 8 up to 17 24 1010 PET15 15 10 up to 21 27 1230 PET20 20 14 up to 25 32 1400 PET25 25 18 up to 32 38 1720 PET30 30 20 up to 40 48 2160 PET40 40 30 up to 55 67 2870 PET50 50 40 up to 65 78 3960 (*) Indicative weight for 100 meters. (**) Indicative diameter, to follow in case of important variations of sections on the part to be protected. Part Number Table Description Part Number Description Part Number Sleeving, Braid, 3mm, Black, 10m PETBK3B10 Sleeving, Braid, 15mm, Black, 5m PETBK15BG5 Sleeving, Braid, 4mm, Black, 10m PETBK4B10 Sleeving, Braid, 20mm, Black, 5m PETBK20BG5 Sleeving, Braid, 5mm, Black, 10m PETBK5B10 Sleeving, Braid, 25mm, Black, 5m PETBK25BG5 Sleeving, Braid, 6mm, Black, 10m PETBK6B10 Sleeving, Braid, 30mm, Black, 5m PETBK30BG5 Sleeving, Braid, 8mm, Black, 10m PETBK8B10 Sleeving, Braid, 40mm, Black, 5m PETBK40BG5 Sleeving, Braid, 10mm, Black, 10m PETBK10B10 Sleeving, Braid, 50mm, Black, 5m PETBK50BG5 Sleeving, Braid, 12mm, Black, 10m PETBK12B10 Sleeving, Braid, 3mm, Grey, 5m PETGY3BG5 Sleeving, Braid, 15mm, Black, 10m PETBK15B10 Sleeving, Braid, 4mm, Grey, 5m PETGY4BG5 Sleeving, Braid, 20mm, Black, 10m PETBK20B10 Sleeving, Braid, 5mm, Grey, 5m PETGY5BG5 Sleeving, Braid, 25mm, Black, 10m PETBK25B10 Sleeving, Braid, 6mm, Grey, 5m PETGY6BG5 Sleeving, Braid, 30mm, Black, 10m PETBK30B10 Sleeving, Braid, 8mm, Grey, 5m PETGY8BG5 Sleeving, Braid, 40mm, Black, 10m PETBK40B10 Sleeving, Braid, 10mm, Grey, 5m PETGY10BG5 Sleeving, Braid, 50mm, Black, 10m PETBK50B10 Sleeving, Braid, 12mm, Grey, 5m PETGY12BG5 Sleeving, Braid, 3mm, Black, 5m PETBK3BG5 Sleeving, Braid, 15mm, Grey, 5m PETGY15BG5 Sleeving, Braid, 5mm, Black, 5m PETBK5BG5 Sleeving, Braid, 20mm, Grey, 5m PETGY20BG5 Sleeving, Braid, 6mm, Black, 5m PETBK6BG5 Sleeving, Braid, 25mm, Grey, 5m PETGY25BG5 Sleeving, Braid, 8mm, Black, 5m PETBK8BG5 Sleeving, Braid, 30mm, Grey, 5m PETGY30BG5 Sleeving, Braid, 10mm, Black, 5m PETBK10BG5 Sleeving, Braid, 40mm, Grey, 5m PETGY40BG5 Sleeving, Braid, 12mm, Black, 5m PETBK12BG5 Sleeving, Braid, 50mm, Grey, 5m PETGY50BG5 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 06/04/16 V1.1
