PP000240 Pro Power

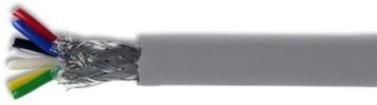

Defence Standard 61-12 Part 4 - 7-1-C Screened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.055mm Construction : T0.1 0.0087 Stranded Dia.(mm) : 0.3 Insulation Material : PVC Insulation Colours : See Insulation Colours Table Insulation Thickness : 0.2 Insulation Dia.(+/-0.05mm) : 0.7 Braid Shield : Tinned Copper Nylon Rip Cord : 150D Jacket Material : PVC Jacket Colour : Grey Jacket Thickness(mm) : 0.35 Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) : <338.6 20C Insulation Resistance (M/Km) : >200 Rated Temperature(C) : 80 Rated Voltage(V) : 250 Insulation Colours table Core Number Colour Core Number Colour 1 Red 9 Orange 2 Blue 10 Pink 3 Green 11 Turquoise 4 Yellow 12 Grey 5 White 13 Red/Blue 6 Black 14 Green/Red 7 Brown 15 Yellow/Red 8 Violet www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 30/04/15 V1.3Defence Standard 61-12 Part 4 - 7-1-C Screened Multicore Cable Part Number Table Core Jacket Diameter Reel Length Description Braiding Filler Part Number No. (0.2mm) (m) 25 PP000237 Cable, Screen, DEF 7-1-4C 4 3.2mm T0.1165 - 100 PP000238 25 PP000239 Cable, Screen, DEF 7-1-6C 6 3.6mm T0.1166 0.7PVC Strip 100 PP000240 25 PP000241 Cable, Screen, DEF 7-1-9C 9 4.2mm T0.1168 1.3 PVC Strip 100 PP000242 Cable, Screen, DEF 7-1-15C 15 5.2mm T0.15166 - 25 PP000243 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 30/04/15 V1.3
