PP000294 Pro Power

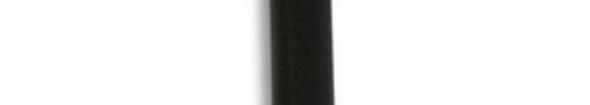

Defence Standard 61-12 Part 4 - 7-1-C Screened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.055mm Construction : T0.1 0.0087 Stranded Dia.(mm) : 0.3 Insulation Material : PVC Insulation Colours : See Insulation Colours Table Insulation Thickness : 0.2 Insulation Dia.(+/-0.05mm) : 0.7 Braid Shield : Tinned Copper Nylon Rip Cord : 150D Jacket Material : PVC Jacket Colour : Black Jacket Thickness (mm) : 0.35 Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) : <338.6 20C Insulation Resistance (M/Km) : >200 Working Temperature Range : -30C to +70C Rated Max. Temperature(C) : 80 Rated Voltage(V) : 250 Insulation Colours table Core Number Colour Core Number Colour 1 Red 14 Green/Red 2 Blue 15 Yellow/Red 3 Green 16 White/Red 4 Yellow 17 Red/Black 5 White 18 Red/Brown 6 Black 19 Yellow/Blue 7 Brown 20 White/Blue 8 Violet 21 Blue/Black 9 Orange 22 Orange/Blue 10 Pink 23 Green/Blue 11 Turquoise 24 Grey/Blue 12 Grey 25 Yellow/Green 13 Red/Blue www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 14/01/16 V1.4Defence Standard 61-12 Part 4 - 7-1-C Screened Multicore Cable Part Number Table Core Jacket Diameter Reel Length Description Braiding Filler Part Number No. (mm) (m) 25 PP000291 Cable, Screen, DEF 7-1-2C 2 2.8 100 PP000292 T0.1164 25 PP000293 Cable, Screen, DEF 7-1-3C 3 3 - 100 PP000294 25 PP000295 Cable, Screen, DEF 7-1-4C 4 3.2 T0.1165 100 PP000296 25 PP000297 Cable, Screen, DEF 7-1-6C 6 3.6 T0.1166 0.7PVC Strip 100 PP000298 25 PP000299 Cable, Screen, DEF 7-1-9C 9 4.2 1.3 PVC Strip 100 PP000300 T0.1168 25 PP000301 Cable, Screen, DEF 7-1-12C 12 4.4 100 PP000302 25 PP000303 Cable, Screen, DEF 7-1-15C 15 5.2 T0.15166 - 100 PP000304 25 PP000305 Cable, Screen, DEF 7-1-25C 25 6.3 T0.15168 100 PP000306 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 14/01/16 V1.4
