PP000439 Pro Power

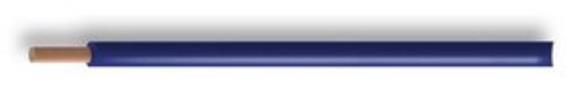

H05Z-K / H07Z-K BS EN 50525-3-41 LSZH Wire Application: In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed. Construction: Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 50363-5. Cable Standards BS EN 50525-3-41 (previously BS 7211 Table 3 and 4b CENELEC HD22.9), BS EN/IEC 60332-1-2, BS EN 50267-2-1, BS EN/IEC 61034-1 Characteristics: Voltage Rating (Uo/U) 2 2 H05Z-K - 0.5mm to 1mm : 300/500V 2 2 H07Z-K - 1.5mm to 6mm : 450/750V Temperature Rating -25C to +90C Minimum Bending Radius 2 Up to 35mm : 4 overall diameter 2 50mm and above : 6 overall diameter Insulation Colour Black, Blue, Brown & Green/Yellow Dimensions: 2491B - H05Z-K Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000435 0.5 0.6 1.9 2.4 0.015 PP000436 Black 0.75 0.6 2.2 2.8 0.011 PP000432 1 0.6 2.4 2.9 0.01 PP000441 0.75 0.6 2.2 2.8 0.011 Blue PP000437 1 0.6 2.4 2.9 0.01 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/02/15 V1.3H05Z-K / H07Z-K BS EN 50525-3-41 LSZH Wire Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000445 0.75 0.6 2.2 2.8 0.011 Brown PP000442 1 0.6 2.4 2.9 0.01 PP000449 0.5 0.6 1.9 2.4 0.015 PP000451 Green/Yellow 0.75 0.6 2.2 2.8 0.011 PP000446 1 0.6 2.4 2.9 0.01 6701B H07Z-K Nominal Overall Diameter Nominal Cross Thickness of Min. Resistance of Part Number Colour Sectional Area Insulation Insulation at 90C Lower Limit Upper Limit mm mm M/km mm mm PP000433 1.5 0.7 2.8 3.5 0.01 Black PP000434 2.5 0.8 3.4 4.3 0.009 PP000438 1.5 0.7 2.8 3.5 0.01 PP000439 Blue 2.5 0.8 3.4 4.3 0.009 PP000440 6 0.8 4.4 5.5 0.006 PP000443 1.5 0.7 2.8 3.5 0.01 Brown PP000444 2.5 0.8 3.4 4.3 0.009 PP000447 1.5 0.7 2.8 3.5 0.01 PP000448 Green/Yellow 2.5 0.8 3.4 4.3 0.009 PP000450 6 0.8 4.4 5.5 0.006 Conductors Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Nominal Cross Max. Diameter of Wires Max. Resistance of Conductor at 20C Sectional Area in Conductor Plain Wires mm mm / km 0.5 0.21 39 0.75 0.21 26 1 0.21 19.5 1.5 0.26 13.3 2.5 0.26 7.98 6 0.31 3.3 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/02/15 V1.3
