PP000894 Pro Power

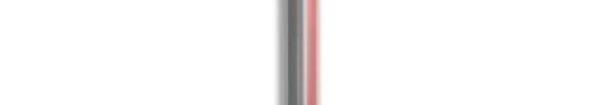

Twinflex PVC Battery Cable Application: For indoors and outdoors, in dry as well as wet location on motorised vehicles, or battery powered equipment such as forklifts and field conveyors. Also suitable for use in high quality booster cables. Cable Standards: Made in accordance with the following: Figure of 8 configuration based on VDE0250 BS EN 60332-1-2, BS EN 62230 Construction: Conductor : Class 6 extra flexible copper conductor to BS EN 60228 (previously BS 6360) Insulation : TPE (Thermoplastic Elastomer) Sheath : PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 450/750V Temperature Rating : -20C to +70C Min. Bending Radius : 6 overall diameter Insulation Colour : Red and Black Sheath Colour : Transparent Electrical Characteristics: Current Carrying Capacity No. of Nominal Cross Sectional Area Current Rating at 60C 2 Cores mm Amps 2 6 54 2 10 73 2 16 98 2 25 129 De-Rating Factors: Ambient Temperature 25C 30C 35C 40C 45C De-Rating Factor 1.00 0.96 0.9 0.88 0.83 To allow the operator to handle the cable during use, with suitable gloves, a maximum conductor temperature of 60C is advisable. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 08/05/15 V1.2Twinflex PVC Battery Cable Conductors: Class 6 Flexible Copper Conductors for Single Core and Multi-Core Cables Max. Resistance of Nominal Cross Max. Diameter of Conductor at 20C Sectional Area Stranding Wires in Conductor Plain Wires 2 mm mm /km 6 8mm 24mm 0.19mm 0.21 3.3 10 19mm 16mm 0.19mm 0.21 1.91 16 19mm 26mm 0.19mm 0.21 1.21 25 19mm 41mm 0.19mm 0.21 0.78 The above table is in accordance with BS EN 60228 (previously BS 6360) Dimensions: Nominal Cross Nominal Thickness Nominal Thickness Nominal Over- Nominal No of AWG Part Number Sectional Area of Insulation of Sheath all Diameter Weight Cores Size 2 mm mm mm mm kg/km PP000894 2 6 10 1 1 5.3 12.6 190 PP000895 2 10 8 1 1.2 6 13.8 294 PP000896 2 16 6 1 1.2 6.7 15.2 420 PP000897 2 25 4 1.1 1.3 8.1 18 627 Part Number Table Reel Length Description Part Number (m) PP000894 PP000895 Twinflex PVC Battery Cable 25 PP000896 PP000897 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 08/05/15 V1.2
