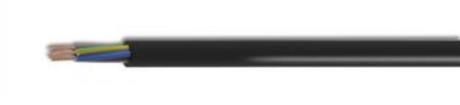

H07RN-F BS EN 50525-2-21 Unscreened Multicore Flexible Rubber Cable Application: These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. Cable Standards: Made in accordance with the following: BS EN 50525-2-21 (BS 7919), BS EN 60811-2-1, BS EN/IEC 60332-1-2 Construction: Conductor : Class 5 flexible copper conductor to BS EN 60228 (previously BS 6360) Insulation : EPR (Ethylene Propylene Rubber) Type EI4 according to BS EN 50363 Sheath : PCP (Polychloroprene) Type EM2 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 450/750V Temperature Rating : Fixed: -30C to +60C +85C. For fixed protected installations. Flexed: -15C to +60C Min. Bending Radius : Fixed : 4 overall diameter Flexed: 6 x overall diameter Core Identification : 3 core : Green/Y ellow, Blue & Brown 4 core : Green/Yellow, Brown, Black & Grey 5 core : Green/Yellow, Blue, Brown, Black & Grey 6 core and above : Black with White numbers, Green/Yellow Sheath Colour : Black 2 2 Electrical Characteristics (1mm to 2.5mm ): Current Carrying Capacity and Mass Supportable Current Carrying Capacity Nominal Cross Max. Mass Supportable by Sectional Area Twin Flexible Cable Single-Phase AC Three-Phase AC 2 mm kg Amps Amps 1 10 10 5 1.5 16 16 5 2.5 25 20 5 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 15/05/15 V1.1H07RN-F BS EN 50525-2-21 Unscreened Multicore Flexible Rubber Cable Voltage Drop Nominal Cross DC or Single-Phase AC Three-Phase AC Sectional Area mV/A/m mV/A/m 2 mm 1 46 40 1.5 32 27 2.5 19 16 Conductor operating temperature: 60C 2 Electrical Characteristics (4mm and above) Current Carrying Capacity 60C Conductor Operating Temperature 85C Conductor Operating Temperature Nominal Single-Phase AC or DC Three-Phase AC Single-Phase AC or DC Three-Phase AC Cross 1 Two Core Cable, 1 Two Core Cable, Sectional 1 Three Core, 2 Single Core 1 Three Core, With or Without 2 Single Core With or Without Four Core or Cables Touch- Four Core or Five Area Protective Cables Protective 2 Five Core Cable ing Core Cable mm Conductor Amps Conductor Amps Amps Amps Amps Amps 4 30 - 26 41 - 36 6 39 - 34 53 - 47 Ambient temperature : 30C Conductor operating temperature : 60C / 85C Voltage Drop 1 Three Core, Two Core Cable, Two Core Cable, Four Core or Five Nominal Cross Sectional Area DC Single-Phase AC Core Cable, 2 mm mV/A/m mV/A/m Three-Phase AC mV/A/m 4 12 12 10 6 7.8 7.8 6.7 Conductor operating temperature: 60C De-Rating Factors: Ambient Temperature +35C +40C +45C +50C +55C De-Rating Factor 0.91 0.82 0.71 0.58 0.41 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 15/05/15 V1.1
