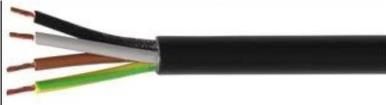

PP-3184Y-2.50MMBLK Pro Power

318-Y/H05VV-F BS EN 50525-2-11 Flexible Cable Application: Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications. Cable Standards: BS EN 50525-2-11 (previously BS 6500), BASEC Approved, BS EN/IEC 60332-1-2 Construction: Conductor : Class 5 flexible stranded copper conductor according to BS EN 60228 (previously BS 6360) Insulation : PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363 Sheath : PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 300/500V Temperature Rating : Flexed: +60C to +70C Min. Bending Radius : Flexed: 8 overall diameter Core Identification : 2 core: Blue & Brown 3 core: Blue, Brown & Green/Yellow 4 core: Brown, Black, Grey & Green/Yellow 5 core: Brown, Black, Grey, Blue & Green/Yellow Sheath Colour : White & Black Electrical Characteristics Current Carrying Capacity and Mass Supportable Current Carrying Capacity Nominal Cross Max. Mass Supportable by Twin Sectional Area Flexible Cord Single-Phase AC Three-Phase AC 2 mm kg Amps Amps 0.75 6 6 3 1 10 10 5 1.5 16 16 5 2.5 25 20 5 The above table is in accordance with Table 4F3B of the 17th Edition of IEE Wiring Regulations. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 01/08/17 V1.1318-Y/H05VV-F BS EN 50525-2-11 Flexible Cable Voltage Drop Nominal Cross DC or Single-Phase AC Three-Phase AC Sectional Area mV/A/m mV/A/m 2 mm 0.75 62 54 1 46 40 1.5 32 27 2.5 19 16 Conductor operating temperature: 60C The above table is in accordance with Table 4F3B of the 17th Edition of IEE Wiring Regulations. Conductors: Class 5 Flexible Stranded Copper Conductors for Multi-Core Cables. Nominal Cross Max. Resistance of Conductor at 20C Max. Diameter of Wires in Conductor Sectional Area Plain Wires mm 2 mm /km 0.75 0.21 26 1 0.21 19.5 1.5 0.26 13.3 2.5 0.26 7.98 The above table is in accordance with BS EN 60228 (previously BS 6360) De-Rating Factors: De-Rating Factor for Ambient Temperature 60C Thermoplastic or Thermosetting Insulated Cords Air Temperature 35C 40C 45C 50C 55C De-Rating Factor 0.91 0.82 0.71 0.58 0.41 The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations. Dimensions: Max. Nominal Nominal Nominal Cross Nominal No. of No. of Thickness of Overall Part Number Sectional Area Weight Cores Strands Insulation Diameter 2 mm kg/km Strand Size mm mm PP-3182Y-0.75MMWHT 2 0.75 24 0.19mm 0.6 6.3 57 PP-3182Y-1MMWHT 2 1 32 0.19mm 0.6 6.6 65 PP-3182Y-1.50MMWHT 2 1.5 30 0.24mm 0.7 7.4 84 PP-3182Y-2.50MMWHT 2 2.5 50 0.24mm 0.8 9.1 130 PP-3183Y-1MMWHT 3 1 32 0.19mm 0.6 7 78 PP-3183Y-1.50MMWHT 3 1.5 30 0.24mm 0.7 8.1 108 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 01/08/17 V1.1
