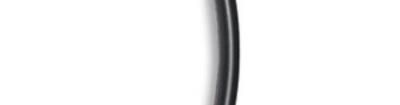

Sleeving Application: A flexible PVC sleeving in a wide range of sizes, manufactured to meet 105C applications, supplied in 100 metre coils continuous sleeving to facilitate overall protection of cable harnesses. Specifications: Continuous Operating Temperature : -40C to +105C Density : 1.35 2 Tensile Strength : 18N/mm Elongation to Break : 250% Min. Cold Bend : -30C Insulation Resistance : 10 to Pwr 12/ cm Hardness : 83 A Shore Dielectric Strength : 25kV/mm Flammability : Self-extinguishing in 30 seconds Tolerance : 0.15mm Part Number Table Min. Wall Thickness Description Inside Diameter Colour Part Number (mm) (mm) Sleeving, Ins, 1mm, Black, 100m Black PVC-1-0-CL 1 Sleeving, Ins, 1mm, Red, 100m Red PVC-1-2-CL Sleeving, Ins, 2mm, Grn/Yell, 100m Green / Yellow PVC-2-45-CL Sleeving, Ins, 2mm, Black, 100m Black PVC-2-0-CL 0.5 Sleeving, Ins, 2mm, Brown, 100m Brown PVC-2-1-CL 2 Sleeving, Ins, 2mm, Blue, 100m Blue PVC-2-6-CL Sleeving, Ins, 2mm, Gry, 100m Grey PVC-2-8-CL Sleeving, Ins, 2mm, Red, 100m Red PVC-2-2-CL www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 28/07/15 V1.1Sleeving Part Number Table Min. Wall Thickness Description Inside Diameter Colour Part Number (mm) (mm) Sleeving, Ins, 3mm, Grn/Yell, 100m Green / Yellow PVC-3-45-CL Sleeving, Ins, 3mm, Black, 100m Black PVC-3-0-CL Sleeving, Ins, 3mm, Brown, 100m Brown PVC-3-1-CL 3 Sleeving, Ins, 3mm, Blue, 100m Blue PVC-3-6-CL Sleeving, Ins, 3mm, Gry, 100m Grey PVC-3-8-CL Sleeving, Ins, 3mm, Red, 100m Red PVC-3-2-CL Sleeving, Ins, 4mm, Grn/Yell, 100m Green / Yellow PVC-4-45-CL Sleeving, Ins, 4mm, Black, 100m Black PVC-4-0-CL Sleeving, Ins, 4mm, Brown, 100m Brown PVC-4-1-CL 4 Sleeving, Ins, 4mm, Blue, 100m Blue PVC-4-6-CL Sleeving, Ins, 4mm, Gry, 100m Grey PVC-4-8-CL Sleeving, Ins, 4mm, Red, 100m 0.5 Red PVC-4-2-CL Sleeving, Ins, 6mm, Grn/Yell, 100m Green / Yellow PVC-6-45-CL Sleeving, Ins, 6mm, Black, 100m Black PVC-6-0-CL Sleeving, Ins, 6mm, Blue, 100m 6 Blue PVC-6-6-CL Sleeving, Ins, 6mm, Gry, 100m Grey PVC-6-8-CL Sleeving, Ins, 6mm, Red, 100m Red PVC-6-2-CL Sleeving, Ins, 7mm, Black, 100m Black PVC-7-0-CL 7 Sleeving, Ins, 7mm, Red, 100m Red PVC-7-2-CL Sleeving, Ins, 8mm, Black, 100m Black PVC-8-0-CL 8 Sleeving, Ins, 8mm, Red, 100m Red PVC-8-2-CL Sleeving, Ins, 10mm, Black, 100m Black PVC-10-0-CL 10 Sleeving, Ins, 10mm, Red, 100m Red PVC-10-2-CL Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 28/07/15 V1.1
