PVI-028-1100-BLK Pro Power

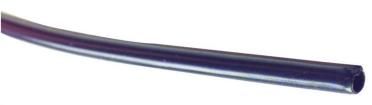

PVC Insulating Tubing Features: UL Subject 224 VW-1. CSA OFT, Size 24 - Size 1 rated for 300V, Size 5/16 to 2 rated for 600V. ASTM D 922. AMS 3631. MIL-1-631 D Grade C QPL Approved. UL File No. E52331 Specifications: Body Material : PVC For Use With : Cable & Wire Sleeving / Tubing Type : Insulating Operating Temperature Range : -20C to +105C Property Test Method Typical Volume Specific Gravity ASTM D 792 1.32 Durometer Shore A ASTM D 2240 91 Tensile Strength ASTM D 876 2,800psi Elongation ASTM D 876 2.88 Brittleness Temperature ASTM D 746 -20C Heat Aging 7 Days 136C UL Subject 224 81% Heat Aging 14 Days 131C CSA 22.2 No.198 Pass Oil Aging 4 Hours 70C SAE 20 CSA 22.2 No.198 85% Insulating Varnish Test 20 hours CSA 22.2 No.198 Pass 150C in lsonel 31 Flammability UL Subject 224 VW-1 Pass Deformation 1 hour 121c UL Subject 224 22% 12 Volume Resistivity ASTM D 257 5.4 10 Dielectric Constant 1 KHz ASTM D 150 6.0 Dissipation Factor 1KHz ASTM D 150 0.09 Dielectric Strength 0.021 Specimen ASTM D 149 750vpm www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/03/15 V1.2PVC Insulating Tubing Part Number Table Nominal Wall Spool Nominal I.D Part Number AWG Thickness Description Size Size (Feet) Inches (mm) Inches (mm) Colour Black Colour Clear 24 0.022 0.56 PVI-S24-1100-BLK PVI-S24-1100-CLR 0.012 0.30 22 0.027 0.69 PVI-S22-1100-BLK PVI-S22-1100-CLR 20 0.034 0.86 PVI-S20-1100-BLK PVI-S20-1100-CLR 19 0.038 0.97 PVI-S19-1100-BLK N/A 18 0.042 1.07 PVI-S18-1100-BLK PVI-S18-1100-CLR 17 0.047 1.19 PVI-S17-1100-BLK PVI-S17-1100-CLR 16 0.053 1.35 PVI-S16-1100-BLK PVI-S16-1100-CLR 15 0.059 1.50 0.016 0.41 PVI-S15-1100-BLK PVI-S15-1100-CLR 14 0.066 1.68 PVI-S14-1100-BLK PVI-S14-1100-CLR 13 0.076 1.93 PVI-S13-1100-BLK PVI-S13-1100-CLR 12 0.085 2.16 PVI-S12-1100-BLK PVI-S12-1100-CLR 11 0.095 2.41 PVI-S11-1100-BLK PVI-S11-1100-CLR 10 0.106 2.69 PVI-S10-1100-BLK N/A 9 0.118 3.00 PVI-S09-1100-BLK 100 8 0.133 3.38 PVI-S08-1100-BLK PVI-S08-1100-CLR 7 0.148 3.76 PVI-S07-1100-BLK PVI-S07-1100-CLR 6 0.166 4.22 PVI-S06-1100-BLK PVI-S06-1100-CLR PVC Insulating Tubing 5 0.186 4.72 0.020 0.51 PVI-S05-1100-BLK PVI-S05-1100-CLR 4 0.208 5.28 PVI-S04-1100-BLK PVI-S04-1100-CLR 3 0.234 5.94 PVI-S03-1100-BLK PVI-S03-1100-CLR 2 0.263 6.68 PVI-S02-1100-BLK PVI-S02-1100-CLR 1 0.294 7.47 PVI-S01-1100-BLK N/A 5/16 0.313 7.95 PVI-020-1100-BLK PVI-020-1100-CLR 0 0.330 8.38 PVI-S00-1100-BLK N/A 3/8 0.375 9.53 0.025 0.64 PVI-024-1100-BLK PVI-024-1100-CLR 7/16 0.438 11.13 PVI-028-1100-BLK 1/2 0.500 12.70 PVI-032-1100-BLK 5/8 0.625 15.88 0.030 0.76 PVI-040-1100-BLK 3/4 0.750 19.05 PVI-048-1050-BLK 0.035 0.89 N/A 1 1.000 25.40 50 PVI-064-1050-BLK 2 2.000 50.80 0.06 1.52 PVI-128-1050-BLK 9 0.118 3.00 0.020 0.51 500 PVI-S09-1500-BLK 9 0.118 3.00 0.020 0.51 1000 PVI-S09-11000-BLK 18 0.042 1.07 0.016 0.41 500 N/A PVI-S18-1500-CLR Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/03/15 V1.2
