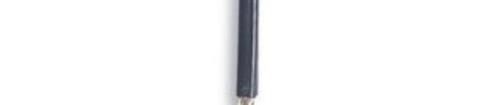

Coaxial Cables RG58 Series Specifications: RG58/CU/100M RG58BU 50M Part Number RG58CU 50M RG58BU 100M RG58CU 500M Construction Conductor Solid copper clad steel conductor Stranded tinned annealed copper conductor Insulation Solid polyethylene Screen Tinned copper braid Sheath PVC, Black. Other colours available Technical Information Cable Diameter 5mm nominal Rated Temperature 75C 80C Conductor Resistance 156/km 38.4/km Screen Resistance 15/km - Insulation Resistance >500M.km Nominal Velocity Ratio 66% Nominal Capacitance 100pF/m <103pF/m Impedance 50 3 Attenuation / dB/100m 20C 5% Attenuation / dB/100m 20C 5% 1MHz 1.44 10MHz 4.5 10MHz 4.6 200MHz 21.6 50MHz 10.8 400MHz 30.5 100MHz 16 650MHz 40 400MHz 37.7 700MHz 55.8 900MHz 65.6 1,000MHz 60 Structural return loss / dB 100 1000MHz <18 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 15/05/13 V1.0Coaxial Cables RG58 Series Part Number Table Description Part Number Cable, Coaxial, 100M, Black, RG58C/U RG58/CU/100M Cable, Coaxial, RG58BU, 50M RG58BU 50M Cable, Coaxial, RG58CU, 50M RG58CU 50M Cable, Coaxial, RG58BU, 100M RG58BU 100M Cable, Coaxial, RG58CU, 500M RG58CU 500M Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 15/05/13 V1.0
