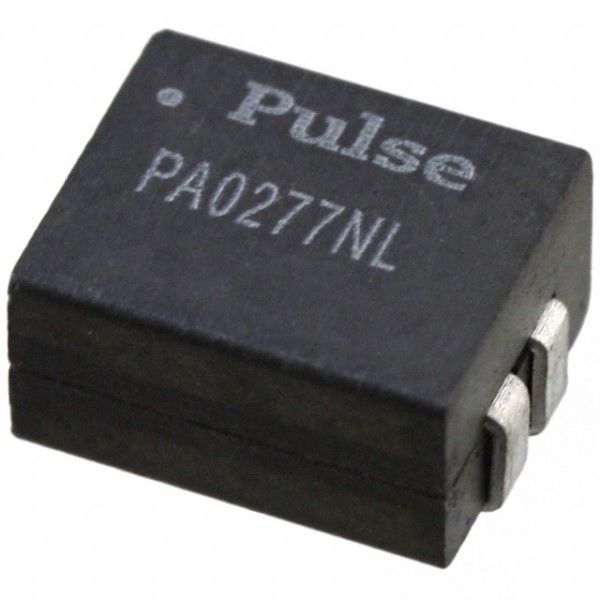

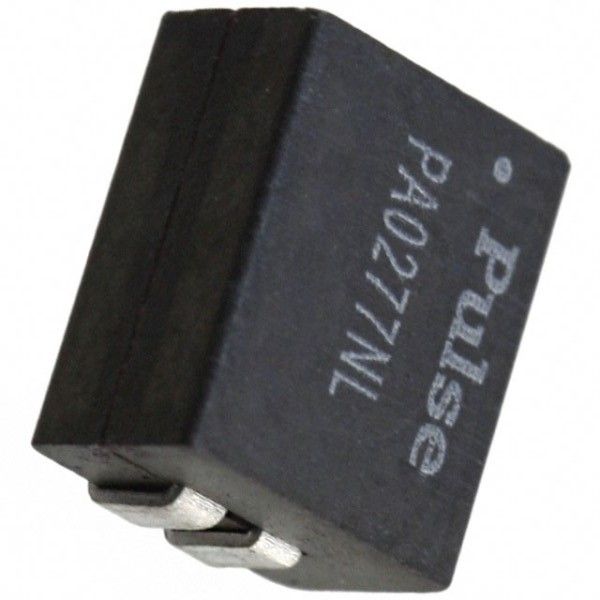

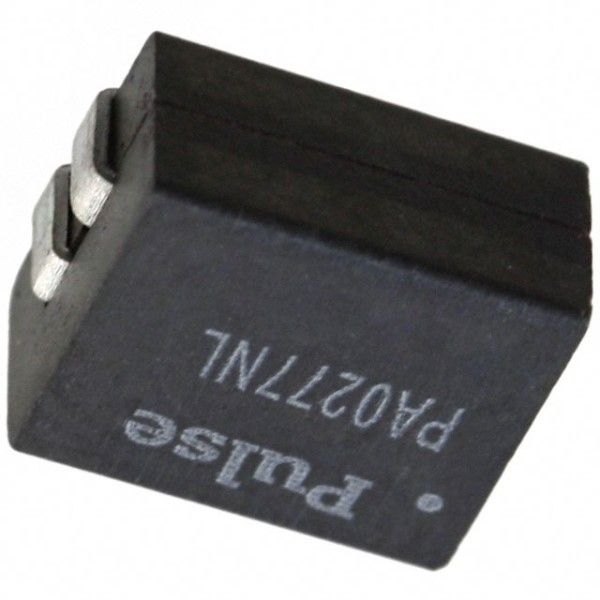

PA0277NL Pulse

SMT Power Inductors Power Beads - Volta 1 & 2 series Height: 3.2mm and 4.5mm Max Footprint: 7.0 x 6.4mm Max and 8.9 x 6.4mm Max Current Rating: up to 16A Inductance Range: 0.1H to 0.6H Frequency Range: up to 2MHz Electrical Specifications 25C - Operating Temperature -40C to +130C 2 Saturation Current DCR 3 4 Inductance Inductance Heating Trise 4 (ADC) Core Loss Factor (m) 5, 6 Part Irated Irated 0ADC Current Factor Number (nH 20%) (ADC) TYP MAX (nH 20%) 25C 100C (A) K0 K1 K2 Volta 1 P1681NLT 95 15 0.31 0.39 100 18 16.2 15 1.0032 .00319 .07381 Volta 2 PA0229NL 92 16 0.68 0.80 100 36 30 16 2.2458 .00638 .03975 P2005 NL** 142.5 15 0.45 0.56 150 18 16.2 15 2.2458 .00638 .05961 P2004NL 190 15 0.45 0.56 200 16.8 15.1 15 2.2458 .00638 .07949 PA0277 NL** 600* 10.7 2.3 95 700 12.6 8.0 10.7 2.0400 .01276 .13196 * DCR and Inductance rating for indicated parts is for both windings tied in series. ** Contact Pulse for availability Mechanical Volta 1 P1681NLT Weight ...........................0.464 grams Tape & Reel ........................1500/reel Inches .010 Dimensions: Unless otherwise specified, all tolerances are mm 0,25 USA 858 674 8100 Germany 49 7032 7806 0 Singapore 65 6287 8998 Shanghai 86 21 62787060 China 86 755 33966678 Taiwan 886 3 4356768 1 pulseelectronics.com P522.F (06/15)SMT Power Inductors Power Beads - Volta 1 & 2 series (continued) Mechanicals Schematics Volta 2 P2004NL/P2005NL PA0229NL P1681NL P2004NL P2005NL PA0229NL NL PA0277NL Weight ...........................0.945 grams Tape & Reel ........................1000/reel Inches Dimensions: mm Unless otherwise specified, .010 all tolerances are 0,25 2 pulseelectronics.com P522.F (06/15)
