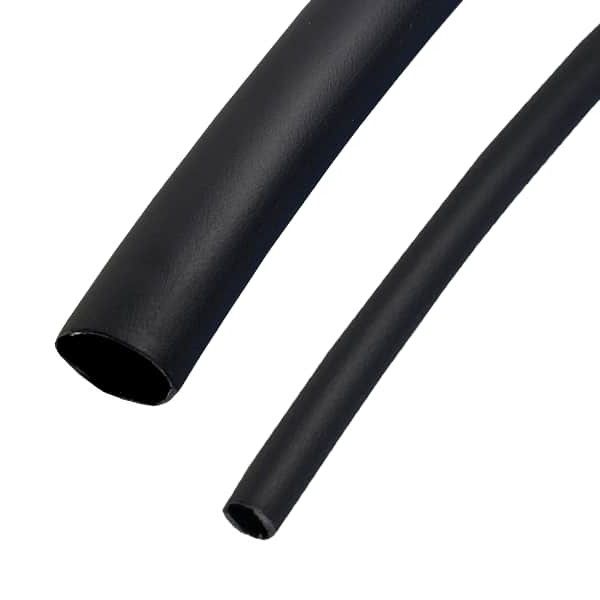

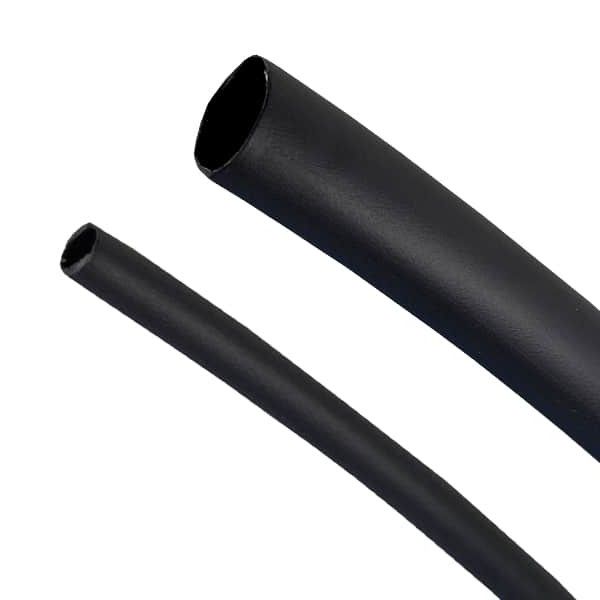

HEAT SHRINK MEDIUM / HEAVY WALL - ADHESIVE LINED Q5-4X DUAL WALL, ADHESIVE LINED, FLEXIBLE POLYOLEFIN TUBING SHRINK RATIO 4:1 Features/Applications Heat shrinkable dual wall adhesive lined tubing is manufactured by co-extrusion sealing for protection against water and moisture of auto wires, shipping cables, metal tubes and bundled wires. Operating temperature: -55C to +125C Minimum shrink temperature: 80C Full recovery temperature: 110C 4 Approvals : File No. E236137, File No. 242540, 125C, VW-1, 600V Meets: Sony-SS-00259, SAE-AMS-DTL-23053/4 Standard color: Black Special colors: Red, blue, white, yellow RoHS Compliant Technical Data Property Test Method Typical Data Operating Temperature IEC 216 -55C to +125C ASTM D 2671 >12 MPa Tensile Strength Ultimate Elongation ASTM D 2671 > 400% UL 224 0 10% Longitudinal Shrinkage ASTM D 2671 < 40% Eccentricity Heat Aging Tensile Strength 158C, 168 hrs. > 11 MPa Ultimate Elongation > 350 % Flammability VW-1 Pass Voltage Withstand ASTM D 2671 / AC2500V. 1 min. No Breakdown 14 ASTM D 2671 >10 .cm Volume Resistance Copper Stability UL 224 Pass UL 224 No Corrosion Copper Corrosion Property of adhesive Ring-Ball Soft Point ASTM E28 95C + 5C Product Dimensions Standard As Supplied After Recovered Size (mm) (mm) Packaging Cut to Length Standard Pcs. Adhesive Inside Inside Total Wall Spool *(QB) Inch mm Diameter Diameter Thickness Thickness *(SS) Qty per bag (min.) (max.) (min.) (nom.) (Meter) 6 48 3/16 4/1 4.0 1.0 1.00 0.5 100 24 25 1/4 6/1.5 6.0 1.5 1.00 0.5 100 20 25 5/16 8/2 8.0 2.0 1.00 0.5 50 18 25 1/2 12/3 12.0 3.0 1.40 0.6 25 14 5 5/8 16/4 16.0 4.0 1.60 0.8 25 14 5 1 24/6 24.0 6.0 2.15 0.8 25 12 5 1 1/4 32/8 32.0 8.0 2.40 1.0 25 8 5 2 52/13 52.0 13.0 2.40 1.0 - 5 5 Notes: 1. * See Part Number Guide for standard packaging codes.. 2. Cross Reference available. 3. Special sizes, packaging, colors and cut pieces are available upon request. Clear and Color tubing other than black are not flame retardant, UL or CSA approved. www.Qualtekusa.com Q54X-200X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Heat Shrink Tubing and Sleeves category: Click to view products by Qualtek manufacturer: Other Similar products are found below : 5685710001 CR9960-000 5734012004 607381P039 611112-000 6284592002 CX4711-000 CZ1420-000 D-306-38 770-006S302 770- 010Y106W1 770-018S103 770-018S202W1 770-018S205W1 770-020S704W1 770-020S705 MFP-3/64 -Clear 790-3012 MHHT-4-15K2- G-104 8003012003 MIL-LT-1-1/2-4-SP MIL-LT-1-1/2-9-STK MIL-LT-1/2-2-STK MIL-LT-3-0-SP MIL-LT-3/32-0-SP MIL-LT-3/32-6-SP MIL-LT-3/4-4-STK MIL-LT-3/4-6-SP 839602-000 8423-6 FP301-116-48 -Clear FP301-12-6 -Clear FP301-1/4-48 -White-Hdr FP301-18-48 -Black-Hdr FP301-1/8-6 -Black FP301-18-6 -Black-Bulk FP301-316-48 -Blue-Hdr 912229N002 R280637030 HDCW-5515- 1000 HDT-0300-48A-BLACK HDT-0400-48A-Black HDT-0800-48A-RED HDT1100-48A-BLK HDT1500-48A-BLK HDT-2000-48A- Black RHW-70/20-1200/ADH-0 DWP-125-0.450-4-55MM-CS879 156082-000 MT5500-3/8-X-SP
