511-5 RADEMACHER

Name: 511-5
Brand: RADEMACHER
SKU: 5115_RADEMACHER
Availability: InStock
Rating: 5 (11 reviews)

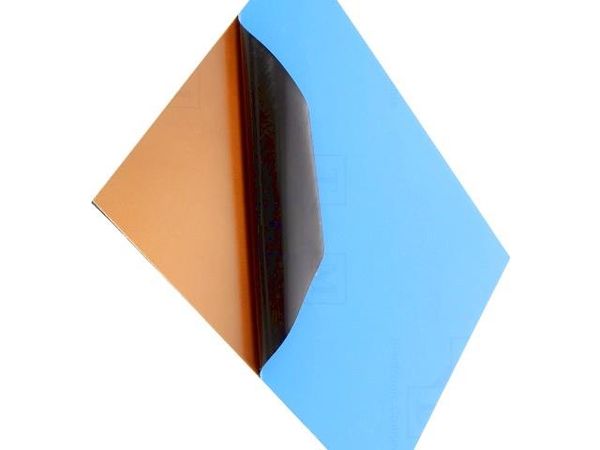

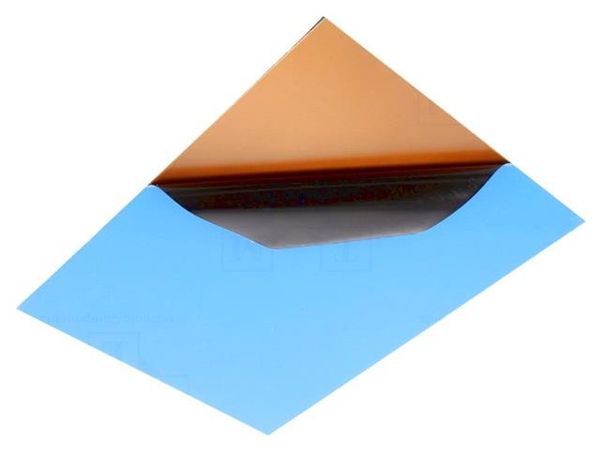

511-5 electronic component of RADEMACHER

Images are for reference only
See Product Specifications

Part No.	511-5
Manufacturer:	RADEMACHER
Category:	Copper Clad Boards
Description:	Laminate; FR4; 1.6mm; L: 150mm; W: 200mm; double sided
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 10.948 ea
Line Total: USD 10.95

Availability - 25
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

511-5 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

25

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 10.948
2 : USD 9.478
5 : USD 8.96
25 : USD 8.75

Specifications

Manufacturer
RADEMACHER RADEMACHER

Product Category
Copper Clad Boards Copper Clad Boards

Material
epoxy resin reinforced with fiberglass, FR4 epoxy resin reinforced with fiberglass, FR4

Length
150 mm 150 mm

Width
200 mm 200 mm

Category
Copper Clad Boards Copper Clad Boards

Kind Of Board Clad
copper, light - sensitive coating copper, light - sensitive coating

Type Of Board
laminate laminate

Copper Plating Thickness
35µm 35µm

Board Variant
double - sided double - sided

Laminate Thickness
1.6mm 1.6mm

Notes:- Show Stocked Products With Similar Attributes.
