X-On Electronics has gained recognition as a prominent supplier of R284C0351057 RF Cable Assemblies across the USA, India, Europe, Australia, and various other global locations. R284C0351057 RF Cable Assemblies are a product manufactured by Radiall. We provide cost-effective solutions for RF Cable Assemblies, ensuring timely deliveries around the world.

R284C0351057 Radiall

Name: R284C0351057
Brand: Radiall
SKU: R284C0351057_Radiall
Availability: InStock
Rating: 5 (11 reviews)

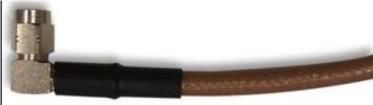

R284C0351057 electronic component of Radiall

Images are for reference only
See Product Specifications

Part No.	R284C0351057
Manufacturer:	Radiall
Category:	RF Cable Assemblies
Description:	RF Cable Assemblies 2 SMA M RA RG316 500MM
Datasheet:	R284C0351057 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 52.2984 ea
Line Total: USD 52.3

Availability - 144
Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

R284C0351057 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

144

Ship by Thu. 28 Nov to Mon. 02 Dec

MOQ : 1
Multiples : 1

1 : USD 52.2984
10 : USD 52.206
25 : USD 51.8017
50 : USD 46.1653
500 : USD 46.1538
1000 : USD 46.1192
2500 : USD 46.1076

Specifications

Manufacturer
Radiall Radiall

Product Category
RF Cable Assemblies RF Cable Assemblies

Impedance
50 Ohms 50 Ohms

Cable Length
0.5 m 0.5 m

Jacket Colour
Brown Brown

Brand
Radiall Radiall

Connector To Connector
90 SMA Plug To 90 SMA Plug 90 SMA Plug To 90 SMA Plug

Coaxial Cable Type
RG316 RG316

Cable Length - Imperial
19.69 in 19.69 in

Cable Length - Metric
500 mm 500 mm

Svhc
Lead (15 - Jan - 2019) Lead (15 - Jan - 2019)

Cable Assembly Type
Audio, Video Audio, Video

Coaxial Type
RG316 RG316

Colour
Brown Brown

Connector Type A
SMA Plug, 90 SMA Plug, 90

Connector Type B
SMA Plug, 90 SMA Plug, 90

Lead Length
50 cm 50 cm

Overall Length
500 mm 500 mm

Voltage Rating
250 V 250 V

Notes:- Show Stocked Products With Similar Attributes.
