X-On Electronics has gained recognition as a prominent supplier of RC1602A-YHY-CSX LCD Character Display Modules & Accessories across the USA, India, Europe, Australia, and various other global locations. RC1602A-YHY-CSX LCD Character Display Modules & Accessories are a product manufactured by Raystar. We provide cost-effective solutions for LCD Character Display Modules & Accessories, ensuring timely deliveries around the world.

RC1602A-YHY-CSX Raystar

Name: RC1602A-YHY-CSX
Brand: Raystar
SKU: RC1602AYHYCSX_Raystar
Availability: InStock
Rating: 5 (11 reviews)

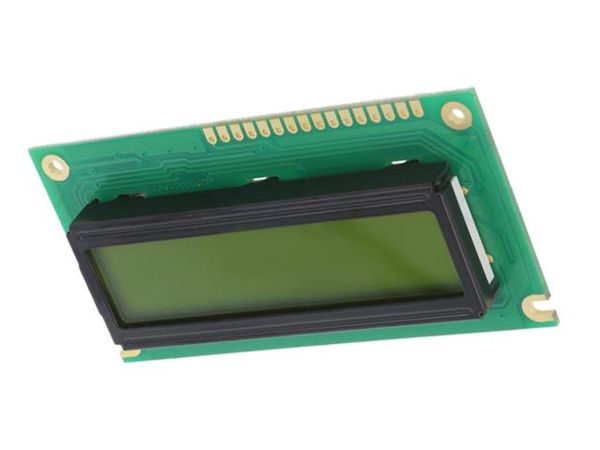

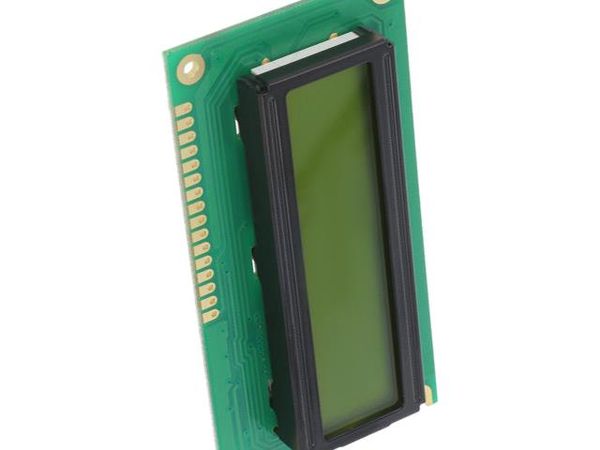

RC1602A-YHY-CSX electronic component of Raystar

Images are for reference only
See Product Specifications

Part No.	RC1602A-YHY-CSX
Manufacturer:	Raystar
Category:	LCD Character Display Modules & Accessories
Description:	Display: LCD; alphanumeric; STN Positive; 16x2/2x16; yellow-green
Datasheet:	RC1602A-YHY-CSX Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 8.638 ea
Line Total: USD 8.64

Availability - 44
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

RC1602A-YHY-CSX More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

44

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 8.638
3 : USD 7.364
7 : USD 6.958
96 : USD 6.72

Specifications

Manufacturer
Raystar Raystar

Product Category
LCD Character Display Modules & Accessories LCD Character Display Modules & Accessories

Category
LCD Character Display Modules Accessories LCD Character Display Modules Accessories

Supply Voltage
4.5 To 5.5 VDC 4.5 To 5.5 VDC

Contacts Pitch
2.54mm 2.54mm

Number Of Pins
16 16

Type Of Pin Configuration
1x16 1x16

Illumination
LED LED

Kind Of Display
alphanumeric alphanumeric

Type Of Display
LCD LCD

Display Technology
STN Positive STN Positive

Digit Height
5.55 mm 5.55 mm

Character Width
2.95 mm 2.95 mm

Kind Of Controller
ST7066U ST7066U

Backlight Colour
yellow - green yellow - green

Backgr. Colour
yellow - green yellow - green

Window Dimensions H X W
66x16mm 66x16mm

Dimensions
84x44x13.2mm 84x44x13.2mm

Supported Character Set
English, Cyrillic English, Cyrillic

Number Of Characters Columns X Lines
16x2 / 2x16 16x2 / 2x16

Notes:- Show Stocked Products With Similar Attributes.
