Product Information

RLEP02566400DGAAASA00

Name: RLEP02566400DGAAASA00
Brand: Raystar
SKU: RLEP02566400DGAAASA00_Raystar
Availability: InStock
Rating: 5 (11 reviews)

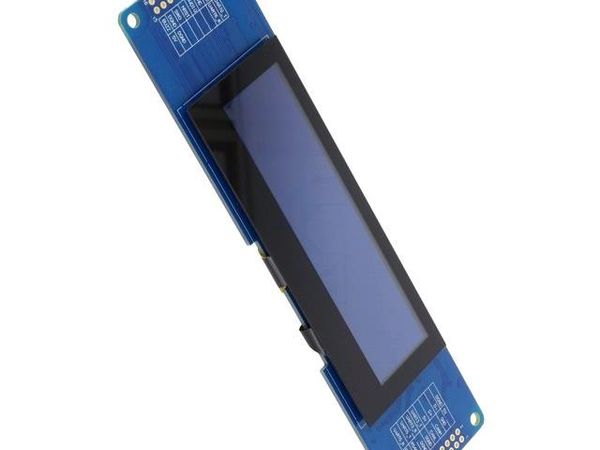

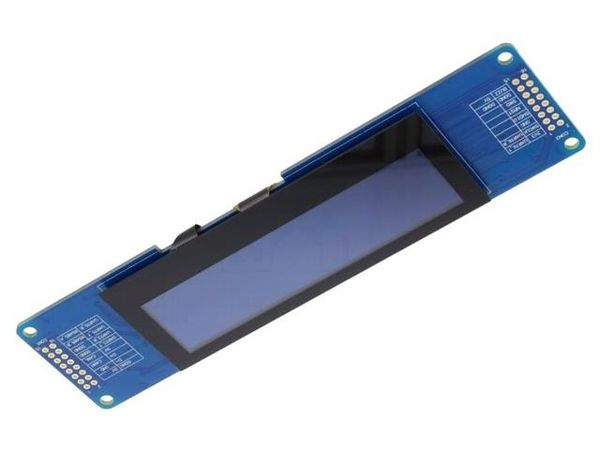

RLEP02566400DGAAASA00 electronic component of Raystar

Images are for reference only
See Product Specifications
Datasheet

Display: OLED; graphical; 3.55\; 256x64; Dim: 157x40x1.6mm; white

Manufacturer: Raystar

This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 98.9723 ea
Line Total: USD 98.97

1 - Global Stock
Ships to you between
Fri. 24 May to Thu. 30 May

MOQ: 1 Multiples: 1
Pack Size: 1

More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1 - WHS 1

Ships to you between Fri. 24 May to Thu. 30 May
MOQ : 1
Multiples : 1

RLEP02566400DGAAASA00
Raystar

1 : USD 96.785

Read More Specifications

Manufacturer

Raystar Raystar

Product Category

Display Modules Display Modules

Dimensions

157x40x1.6mm 157x40x1.6mm

Category

Display Modules Display Modules

Colour

white white

Contacts Pitch

2.54mm 2.54mm

Type Of Pin Configuration

2x16 2x16

Interface

CAN CAN

Kind Of Display

graphical graphical

Type Of Display

OLED OLED

Display Resolution

256x64 256x64

Display Features

capacitive touch panel capacitive touch panel

Window Dimensions H X W

95.04x53.856mm 95.04x53.856mm

Number Of Pins

2x 16 2x 16

Supply Voltage

4.4 To 5.6 VDC 4.4 To 5.6 VDC

Screen Size

3.55 in in 3.55 in in

Notes:- Show Stocked Products With Similar Attributes.
