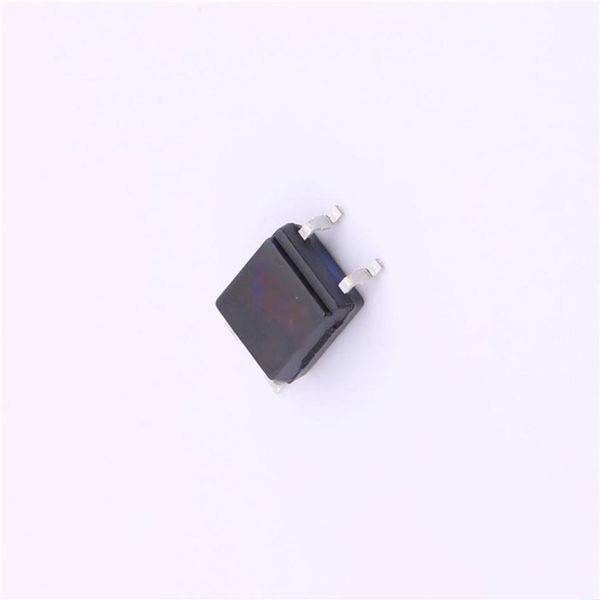

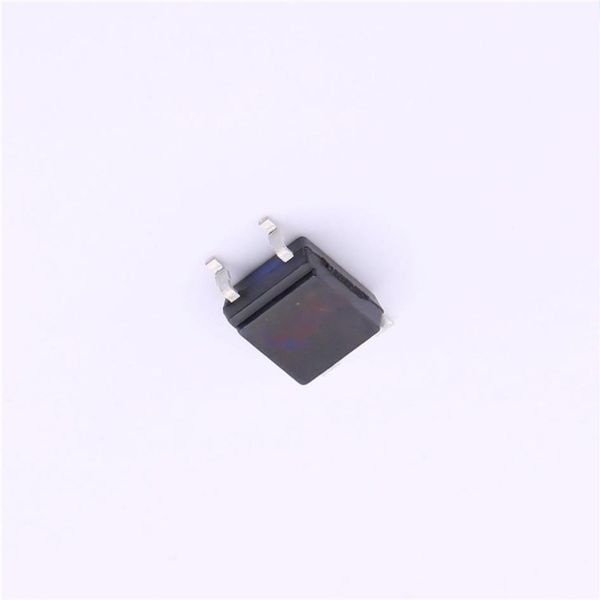

Data Sheet R08DS0162EJ0100 PS2733-1 Rev.1.00 Jun 19, 2019 HIGH COLLECTOR TO EMITTER VOLTAGE SOP MULTI PHOTOCOUPLER DESCRIPTION The PS2733-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected phototransistor. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. It is designed for high density mounting applications. FEATURES High isolation voltage (BV = 2 500 Vr.m.s.) PIN CONNECTION High collector to emitter voltage (V = 350 V) CEO (Top View) Small and thin package (4-pin SOP) 4 3 High current transfer ratio (CTR = 4 000% TYP.) 1. Anode 2. Cathode Ordering number of taping product: PS2733-1-F3: 3 500 pcs/reel 3. Emitter Pb-Free product 4. Collector 1 2 Safety standards UL approved: UL1577, Single protection CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic/Supplementary insulation BSI approved: BS EN 62368-1, Basic/Supplementary insulation VDE approved: DIN EN 60747-5-5 (Option) APPLICATIONS Hybrid IC Telephone/Telegraph Receiver FAX R08DS0162EJ0100 Rev.1.00 Page 1 of 14 Jun 19, 2019 PS2733-1 PACKAGE DIMENSIONS (UNIT: mm) 4.00.5 4 3 7.00.3 4.4 1 2 2.54 0.50.3 +0.10 0.4 0.25 M 0.05 PHOTOCOUPLER CONSTRUCTION Parameter Unit (MIN.) Air Distance 5 mm Creepage Distance 5 mm Isolation Distance 0.3 mm R08DS0162EJ0100 Rev.1.00 Page 2 of 14 Jun 19, 2019 2.10.2 0.10.1 2.0 +0.10 0.15 0.05
