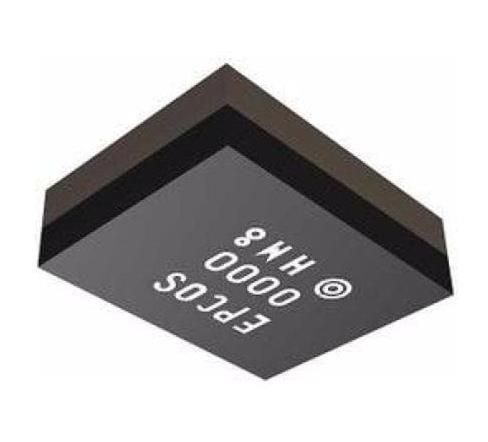

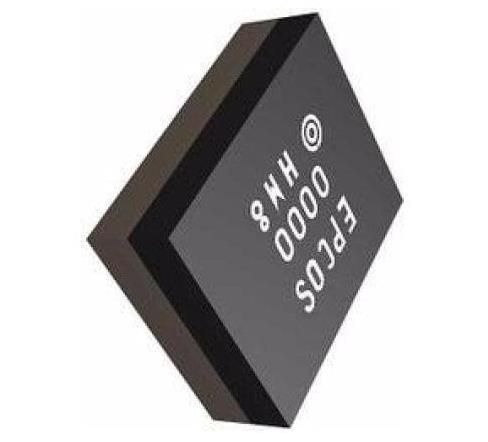

SAW Components SAW filter GPS Series/type: B9416 Ordering code: B39162B9416K610 Date: May 17, 2010 Version: 2.3 EPCOS AG 2010. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information contained therein without EPCOS prior express consent is prohibited.SAW Components B9416 SAW filter 1575.42 MHz Data sheet Application Low-loss RF filter for mobile telephone GPS systems Filter impedance 50 Unbalanced to unbalanced operation Very low insertion attenuation Low amplitude ripple Usable passband 2.0 MHz Features 0,25 3 Package size 1.4 x1.1 x 0.4 mm 2 3 Package code QCS5U bottom view RoHS compatible Approximate weight 0.003 g 5 4 Package for Surface Mount Technology (SMT) Ni, gold-plated terminals 0,5 0,5 Electrostatic Sensitive Device (ESD) side view 1,4 top view Pin configuration 4 Input unbalanced 1 Output unbalanced 2,3,5 To be grounded Please read cautions and warnings and 2 May 17, 2010 important notes at the end of this document. 0,325 1 0,4 1,1 0,575
