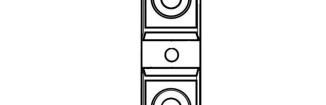

BKR400AB10 BKR400AB10 is designed for high power BKR400AB10 recti er circuits. Suitable for high power application requiring low loss. 2 Advantages Low VFM 0.93V IF 400A 0.93V IO AV 200A each device 200A VRRM 100V VRRM 100V High Surge Capability Applications Switching Power Supply, Power Supply for Metal Surface Treatment Power Supply for Telecommunication Unit mm Maximum Ratings Unless otherwise speci ed Tj 25 / Tj 25 Ratings Symbol Item Unit BKR400AB10 Repetitive Peak Reverse Voltage VRRM 100 V Symbol Item Conditions Ratings Unit Max. Average Forward Current 50% duty cycle, Tc 112 , rectanguiarwaveform IO AV 400 A 50% duty cycle Tc 112 2 cycle, 60Hz, Peak value, non-repetitive 3620 A 60Hz 1/2 Surge On-state Current IFSM cycle, 50Hz, Peak value, non-repetitive 3300 A 50Hz 1/2 2 I t for fusing Per Leg 2 2 I t Value for one cycle of surge current 54450 A s Single Pulse Avalanche Energy Per Leg EAS IAS 30A L 160H15mJ Operating Junction Temperature Tj 40 150 Tstg Storage Temperature 40 125 Recommended Value 25 40 48 kgf Mounting M6 Recommended Value 2.5 3.9 4.7 N m Recommended Value 10 14 15 kgf Mounting Torque Mounting M4 Recommended Value 1.0 1.4 1.5 N m Recommended Value 25 40 48 kgf Terminal M6 Recommended Value 2.5 3.9 4.7 N m Mass Typical Value 78 g Electrical Characteristics Unless otherwise speci ed Tj 25 / Tj 25 Ratings Symbol Item Conditions Unit Min. Typ. Max. Repetitive Peak Revese Current Tj 125 VR 100V Pulse Width 300 s IRRM 40 mA Duty 2% IF 200A, Inst. Measurement 0.82 IF 400A, Inst. Measurement 0.93 Forward Voltage Drop Per Leg VFM V IF 200A, Tj 125 , Inst. Measurement 0.68 IF 400A, Tj 125 , Inst. Measurement 0.78 Thermal Resistance Junction to case Rth(j-c) 0.2 /W BKR400AB10
