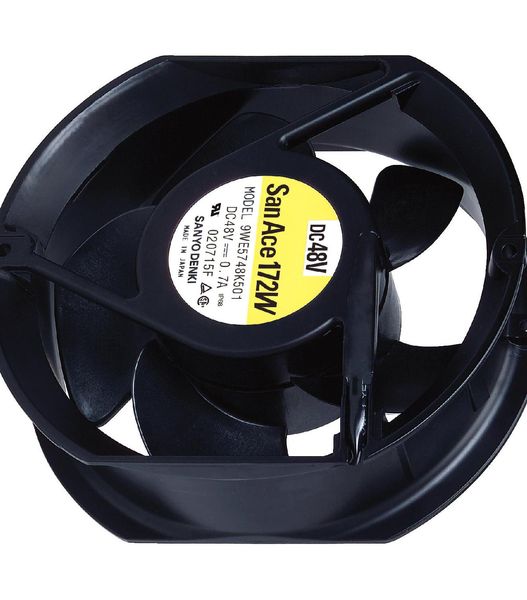

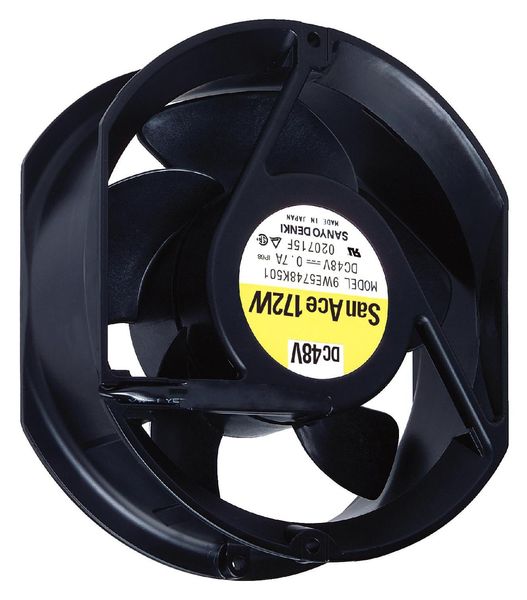

9WE5748P5K01 Sanyo Denki

Splash Proof Fan IP68 172 150 51 mm San Ace 172W 9WE type Sidecut type General Specifications Material Frame: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-1) Expected life See the table below. (L10 life: 90% survival rate for continuous operation in indoor free air at 60C, rated voltage) Motor protection function Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 547. Dielectric strength 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame) Insulation resistance 10 M or more with a 500 VDC megger (between lead wire conductors and frame) Sound pressure level (SPL) At 1 m away from the air inlet Storage temperature -30 to +70C (Non-condensing) Sensor Lead wire Red Black or Blue Yellow Mass 860 g Ingress protection IP68 Specifications The models listed below have pulse sensors. Rated voltage Operating voltage range Rated current Rated input Rated speed Max. airflow Max. static pressure SPL Operating temperature Expected life Model no. -1 [V] [V] [A] [W] [min ] [m/min] [CFM] [Pa] [inchH O] [dB (A)] [C] [h] 9WE5724K501 24 20.4 to 27.6 1.3 31.2 4100 8.5 300 243 0.976 60 40000/60C -20 to +60 9WE5748K501 48 40.8 to 55.2 0.7 33.6 4100 8.5 300 243 0.976 60 40000/60C The following sensor and control options are available for selection. Available for all models. Without sensor Differs according to the model. Refer to the table on p. 578. Lock sensor PWM control Airflow - Static Pressure Characteristics 9WE5724K501 With pulse sensor 9WE5748K501 With pulse sensor Operating voltage range Operating voltage range (inch H2O) (Pa) (inch H2O) (Pa) 300 300 1.2 1.2 27.6 V 55.2 V 250 250 1.0 1.0 24 V 48 V 200 200 0.8 0.8 20.4 V 40.8 V 0.6 150 0.6 150 0.4 100 0.4 100 0.2 50 0.2 50 0 0 0 0 3 3 2 4 6 8 10 (m /min) 2 4 6 8 10 (m /min) 0 100 200 300 400 (CFM) 0 100 200 300 400 (CFM) Airflow Airflow 324 Static pressure Static pressure(unit: mm) Dimensions 4-4.50.3 Mounting hole Lead wire AWG24 UL 1007 7.50.4 7.50.4 1500.8 510.8 Rotating direction Airflow direction Reference Dimensions of Mounting Holes and Vent Opening (unit: mm) Inlet side, Outlet side 148 2-4.5 8.5 Options page: p. 534 Finger guards Model no.: 109-319E, 109-319H, 109-320 325 (10) +30 300 0 168 2-R4.25 1620.3 1720.8 1620.5 Splash Proof Fan 172 mm DC
