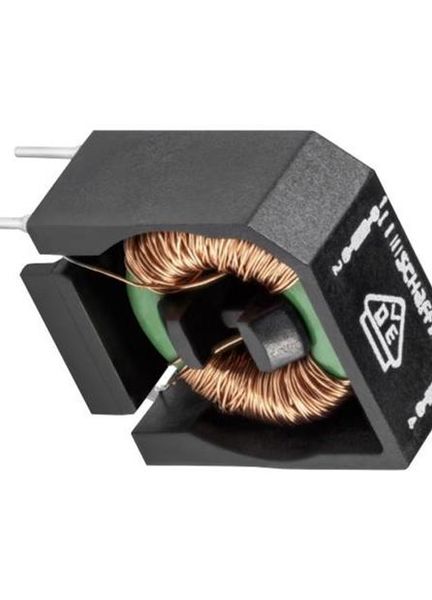

RC112-0.25-47M Schaffner

DATASHEET Common-mode Chokes RC series Current-compensated Chokes Rated currents from 0.25 to 0.7 A Approvals & Compliances DC to 400 Hz frequency 100 kHz to 3 MHz common-mode resonance frequency Dual-choke configurations Multiple PCB-mounting options RC chokes are attenuating common-mode or asymmetric (P/N > E) interference signals, by being connected in series with the phase and neutral lines of an AC powerline input. Symmetrical components of the noise are also attenuated by the leakage inductance (stray inductance) of the windings. These chokes are typically used in conjunction with Performance indicators suppression capacitors. Inductance value mH 0 20 40 60 80 100 Features and benefits 4.7 47 High saturation resistance and excellent thermal behavior Rated current A Through hole pin connections 0 3 6 9 12 15 Dual-choke configuration 0.250.7 Small compact design Multiple housing options Custom-specific versions are available on request Environmental friendly open design Technical specifications Typical applications Rated operating voltage 250 VAC DC to 400 Hz Operating frequency Switch-mode power applications Rated currents 0.25 to 0.7 A rated ambient temperature DC/DC converters Rated inductance 4.7 to 47 mH HVAC, typically in EMI input filter for ventilation Stray inductance Typically 1% of L N LED driver circuit Inductance reduction (DC bias with IN) Less than 10% (25C) For suppression-equipment with no earth High potential test voltage winding-to- 1500 VAC, 60 sec, guaranteed connection, e.g. medical winding 25C 1500 VAC, 2 sec, factory test winding-to-housing 25C 4000 VAC, 60 sec, guaranteed Phase-angle control circuits in combination with Surge current 10 msec 20 x I 25C saturating chokes N Consumer electronics, EDP, test equipment, Temperature range (operation and storage) -40C to 125C (40/125/56) acc. IEC 60068-1 electronic ballasts in lamps etc. UL 94V-0 Flammability corresponding to Applicable for low frequency signaling effective Design corresponding to IEC/EN 60938-2 from 10kHz to 30MHz MTBF Rated amb. Temp./Voltage (Mil- > 5,000,000 hours HB-217F) Typical electrical schematic2 EMC/EMI Products Schaffner Group Datasheets 27 Apr 2020 Choke selection table Choke Buy Current Ambient Inductance Stray Inductance Resistance Pin 1-2** Pin 1-3 Height Weight (l ) (L ) (L ) (R ) N Temperature* N S DC (Pin 3-4) A C mH mH mOhm mm mm mm (g) RC112-0.25-47M 0.25 40 47.0 0.6 2400 10 15 8 3 RC112-0.3-30M 0.3 40 30.0 0.5 2200 10 15 8 3 RC112-0.35-22M 0.35 40 22.0 0.4 1900 10 15 8 3 RC112-0.4-15M 0.4 40 15.0 0.25 1350 10 15 8 3 RC112-0.5-10M 0.5 40 10.0 0.17 1000 10 15 8 3 RC112-0.6-6M8 0.6 40 6.8 0.12 630 10 15 8 3 RC112-0.7-4M7 0.7 40 4.7 0.075 440 10 15 8 3 RC212-0.25-47M 0.25 40 47.0 0.6 2400 5.08 (2.54) 12.7 17.6 3 RC212-0.3-30M 0.3 40 30.0 0.5 2200 5.08 (2.54) 12.7 17.6 3 RC212-0.35-22M 0.35 40 22.0 0.4 1900 5.08 (2.54) 12.7 17.6 3 RC212-0.4-15M 0.4 40 15.0 0.25 1350 5.08 (2.54) 12.7 17.6 3 RC212-0.5-10M 0.5 40 10.0 0.17 1000 5.08 (2.54) 12.7 17.6 3 RC212-0.6-6M8 0.6 40 6.8 0.12 630 5.08 (2.54) 12.7 17.6 3 RC212-0.7-4M7 0.7 40 4.7 0.075 440 5.08 (2.54) 12.7 17.6 3 Test conditions: Measuring frequency: 10 kHz 50 mV Inductance tolerance: +50%, -30% Resistance tolerance: 15% 25C Electrical characteristics 25C: 2C * Rated ambient temperature according to approval. For other ambient temperatures, please make use of the derating graph below ** Values in brackets show the pin-out distance between pin 3 and 4. Symmetrical pin-out on request Product selector Thermal Derating If higher ambient temperatures than the specified apply, the nominal current needs to be reduced according to the graph below.
