AZ 16-03ZVRK-M20 Schmersal

Name: AZ 16-03ZVRK-M20
Brand: Schmersal
SKU: AZ1603ZVRKM20_Schmersal
Availability: InStock
Rating: 5 (11 reviews)

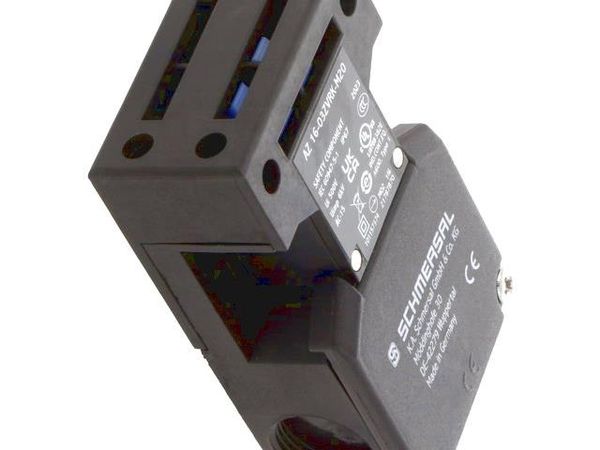

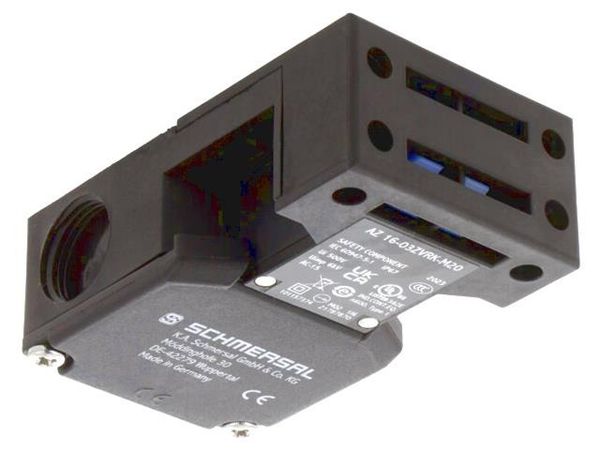

AZ 16-03ZVRK-M20 electronic component of Schmersal

Images are for reference only
See Product Specifications

Part No.	AZ 16-03ZVRK-M20
Manufacturer:	Schmersal
Category:	Emergency Stop Switches / E-Stop Switches
Description:	Safety switch: key operated; AZ 16; NC x3; Features: no key; IP67
Datasheet:	AZ 16-03ZVRK-M20 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 64.1361 ea
Line Total: USD 64.14

Availability - 6
Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

AZ 16-03ZVRK-M20 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

6

Ship by Wed. 27 Nov to Fri. 29 Nov

MOQ : 1
Multiples : 1

1 : USD 64.1361

Specifications

Manufacturer
Schmersal Schmersal

Product Category
Emergency Stop Switches / E-Stop Switches Emergency Stop Switches / E-Stop Switches

IP Rating
IP67 IP67

Category
Emergency Stop Switches / E-Stop Switches Emergency Stop Switches / E-Stop Switches

Body Material
plastic plastic

Colour
black black

Mechanical Durability
1000000 cycles 1000000 cycles

Type Of Safety Switch
key operated key operated

Electrical Connection
M20 x3 M20 x3

Safety Switches Features
no key no key

Contacts Configuration
NC x3 NC x3

Number Of Key Entry Slots
1 1

Manufacturer Series
AZ 16 AZ 16

Body Dimensions
52x90x30mm 52x90x30mm

Related Items
101083036, 101093553, 101095550, 101095558, 101111081, 101137434 101083036, 101093553, 101095550, 101095558, 101111081, 101137434

Operating Temperature
- 30 To 80 C - 30 To 80 C

Contacts Electrical Parameters
250V AC / 4A, 24V DC / 4A 250V AC / 4A, 24V DC / 4A
