BNS33-11Z-ST Schmersal

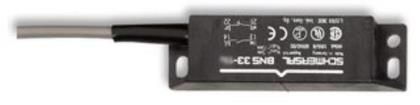

21.04.2011 Print - Create PDF - Create EXCEL file - Hide system components - 15:58:16h Datasheet - BNS 33-02Z-2187 Safety sensors / BNS 33 thermoplastic enclosure Concealed mounting possible Insensitive to transverse misalignment 88 mm x 25 mm x 13 mm Long life (Minor differences between the printed image and the original product no mechanical wear may exist ) Insensitive to soiling AS-Interface Safety at Work available Individual contact outlet Ordering details Product type description BNS 33-02Z-2187 Article number 1128792 EAN code 4030661049595 Approval Approval BG USA/CAN Classification Standards EN ISO 13849-1 B10d Opener (NC) 25.000.000 - notice at max. 20% contact load Mission time 20 Years notice Global Properties Product name BNS 33 Standards IEC 60947-5-3, BG-GS-ET-14 Compliance with the Directives (Y/N) Yes Materials - Material of the housings Plastic, glass-fibre reinforced thermoplastic - Material of the cable mantle PVC Weight 70 g Monitoring function of downstream devices (Y/N) No Prerequisite evaluation unit Yes Recommended safety-monitoring module Recommended actuator BPS 33, BPS 33-2326Mechanical data Design of electrical connection Cable Cable length 1 m Conductors 0,25 mm AWG-Number 23 mechanical installation conditions not flush Active area Side Ensured switch distance ON 5 mm / 8 mm - BPS 33-2326 = 8 mm Actuating magnet - BPS 33 = 5 mm Actuating magnet Ensured switch distance OFF 15 mm / 18 mm - BPS 33 = 15 mm Actuating magnet - BPS 33-2326 = 18 mm Actuating magnet Repeat accuracy R 0,1 x Type of actuation Magnet Direction of motion head-on with regard to the active surface restistance to shock 30 g / 11 ms Resistance to vibration 10 ... 55 Hz, Amplitude 1 mm Ambient conditions Ambient temperature - Min. environmental temperature 25 C - Max. environmental temperature +70 C Storage and transport temperature - Min. Storage and transport temperature 25 C - Max. Storage and transport temperature +70 C Protection class IP67 Electrical data Integrated Safety monitoring module available (Y/N) No Cross circuit/short circuit recognition possible (Y/N) Yes Voltage type VAC/DC Switch frequency max. 5 Hz Switching voltage max. 100 VAC/DC Switching current max. 250 mA Switching capacity max. 3 W Outputs Design of control output Other, Reed contakts Number of shutters 0 piece Number of openers 2 piece Electrical data - Safety outputs Number of secure semi-conductor outputs 0 piece Number of secure outputs with contact 0 piece Electrical data - Diagnostic output
