K1B002ALH Schneider

Name: K1B002ALH
Brand: Schneider
SKU: K1B002ALH_Schneider
Availability: InStock
Rating: 5 (11 reviews)

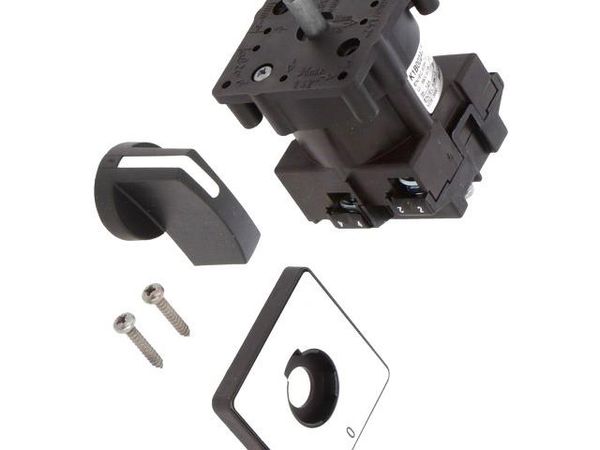

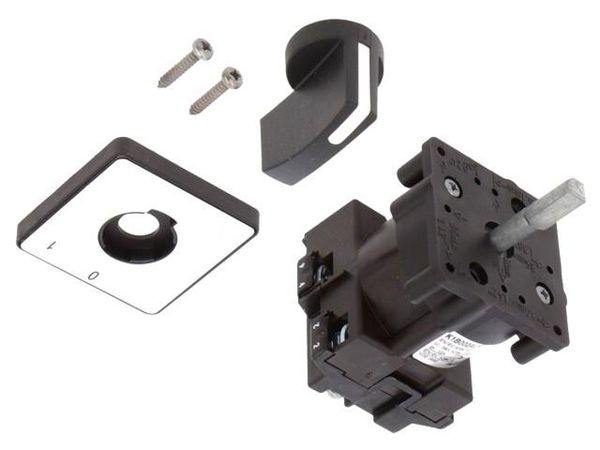

K1B002ALH electronic component of Schneider

Images are for reference only
See Product Specifications

Part No.	K1B002ALH
Manufacturer:	Schneider
Category:	Basic / Snap Action Switches
Description:	Switch: cam switch; Stabl.pos:2; 12A; 0-1; Poles:2; Pos:2
Datasheet:	K1B002ALH Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 31.052 ea
Line Total: USD 31.05

Availability - 10
Ship by Mon. 10 Mar to Wed. 12 Mar

MOQ: 1 Multiples: 1
Pack Size: 1

K1B002ALH More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

10

Ship by Mon. 10 Mar to Wed. 12 Mar

MOQ : 1
Multiples : 1

1 : USD 31.052
2 : USD 29.372
5 : USD 29.358

Specifications

Manufacturer

Schneider Schneider

Product Category

Basic / Snap Action Switches Basic / Snap Action Switches

Current Rating

12 A 12 A

IP Rating

IP65 From The Front IP65 From The Front

Mounting Style

For Building In For Building In

Colour

Black Black

Type Of Switch

Cam Switch Cam Switch

Number Of Poles

2 2

Stable Positions Description

0 - 1 0 - 1

Number Of Positions

2 2

Stable Positions Number

2 2

Mounting Hole Diameter

Ø22 mm Ø22 mm

Face Dimensions

45X45mm 45X45mm
