X-On Electronics has gained recognition as a prominent supplier of 7010714013 Cartridge Fuses across the USA, India, Europe, Australia, and various other global locations. 7010714013 Cartridge Fuses are a product manufactured by Schurter. We provide cost-effective solutions for Cartridge Fuses, ensuring timely deliveries around the world.

7010714013 Schurter

7010714013 electronic component of Schurter

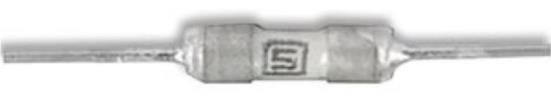

Images are for reference only
See Product Specifications

Part No.	7010714013
Manufacturer:	Schurter
Category:	Cartridge Fuses
Description:	FUSE, WIRE ENDED, 7A AC/DC converters with wide input voltage range and high efficiency
Datasheet:	7010714013 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.9817 ea
Line Total: USD 1.98

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

7010714013 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 02 Dec to Fri. 06 Dec MOQ : 1 Multiples : 1	1 : USD 1.9817 10 : USD 1.7609 100 : USD 1.6134 500 : USD 0.9923 1000 : USD 0.9765 2000 : USD 0.9529

Specifications

Manufacturer Schurter Schurter
Product Category Cartridge Fuses Cartridge Fuses
Series Quick Blow Quick Blow
Fuse Type Axial Leaded Axial Leaded
Voltage Rating AC 125 V 125 V
Voltage Rating DC 125 V 125 V
Termination Style Axial Lead Axial Lead
Fuse Current 7 A 7 A
Breaking Capacity Current Ac 50 A 50 A
Breaking Capacity Current Dc 300 A 300 A
Blow Characteristic Fast Acting Fast Acting
Product Range 172322 Series 172322 Series
Svhc No Svhc (15 - Jun - 2015) No Svhc (15 - Jun - 2015)
Approval Bodies Csa Csa
Approval Category Ul Recognised Ul Recognised
Body Diameter 2.36 mm 2.36 mm
Body Length 8 mm 8 mm
Breaking Capacity 50A @ 125V Ac, 300A @ 125V Dc 50A @ 125V Ac, 300A @ 125V Dc
Case Material Ceramic Ceramic
Fuse Mounting Through Hole Through Hole
Fuse Size Imperial 0.1 in x 0.3 in 0.1 in x 0.3 in
Lead Diameter 0.62 mm 0.62 mm
Lead Length 39 mm 39 mm
Mounting Type Pcb Through Hole Pcb Through Hole
Operating Temperature Max 85 C 85 C
Operating Temperature Min - 55 C - 55 C

We are delighted to provide the 7010714013 from our Cartridge Fuses category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 7010714013 and other electronic components in the Cartridge Fuses category and beyond.
