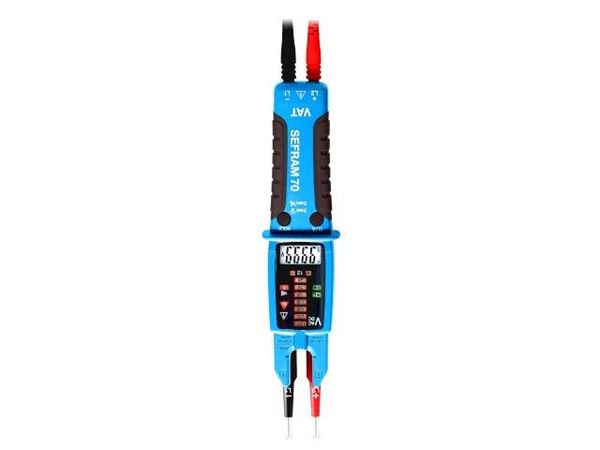

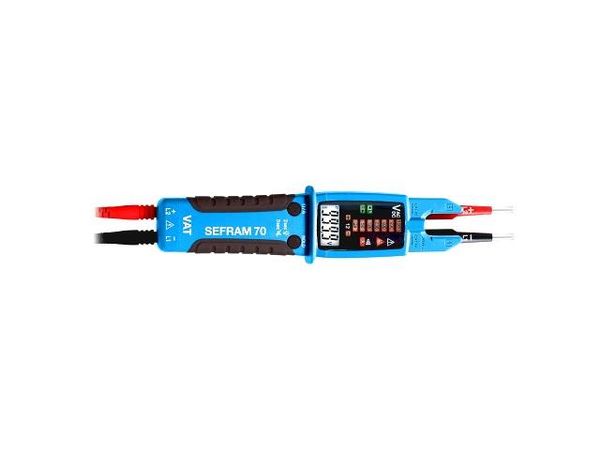

Make sure to visit our Website SEFRAM 70 Sefram Sefram NVD - Clampmeter and Multimeter Technical specifications SEFRAM 70 DC Voltage Range Resolution Accuracy With batteries 7.0V to 999.9V 0.1V (1.0% + 2D) Without batteries (1) 35V to 999.9V 0.1V (1) Measurement without batteries is only available for < 35C, > -15C. The meter will show bAtt and ELV LED when measurement is not available. Max. Input Current < 3.5mA 1000V Overload Protection AC/DC 1000V AC Voltage Range Resolution Accuracy With batteries 6.0V(1) to 999.9V 0.1V (1.5% + 5D) Without batteries (2) 45V to 999.9V 0.1V (1) For > 65Hz, the minimum range is 8.0V. (2) Measurement without batteries is only available for < 35C, > -15C. The meter will show bAtt and ELV LED when measurement is not available. Frequency Response 45Hz to 400Hz Max. Input Current < 3.5mA 1000V Overload Protection AC/DC 1000V Resistor Range Resolution Accuracy 9999 1 (1.5% + 5D) 50.00k 0.01 Output Voltage about 0.5V Overload Protection AC/DC 1000V Continuity The built-in buzzer sounds in the case of measuring resistance less than 1.8k and may be up to 2.7k . LED RX shows at the same time. Continuity Indicator 2.7kHz Tone Buzzer and RX LED Response Time of Buzzer < 100 msec Output Voltage about 0.5V Overload Protection AC/DC 1000V AC Ampere Range Resolution Accuracy 200.00A 0.1A (3.0% + 5D) Frequency Response 45Hz to 65Hz Overload Protection AC/DC 200A Rotary Field Indication For 3 phase 4 wire system only Sensitivity 90V to 1000V (Phase-to-ground) Frequency Range 45Hz to 65Hz L LED is on when the signal of L2 probe lead the signal of L1 probe R LED is on when the signal of L1 probe lead the signal L2 probe. Single-Pole Phase Check Sensitivity 90V to 1000V (Phase-to-ground) Frequency Range 45Hz to 65Hz Indicator 2.7kHz Tone Buzzer and ELV LED General Specifications Display Count 10000 counts. Overrange Display OL or -OL Conversion Rate 3 times/second Dimensions (W x H x D) 57 x 220 x 35 mm Weight 200g Power Requirements AAA Size Batteryx2(R03, LR03, 24D, 24A) Battery Life About 1000 operations. (based on Alkaline batteries, 30 sec. ON, 240 sec. OFF) Maximum Conductor Size 16mm IEC / EN 61010-1, IEC / EN 61010-2-032, IEC / EN 61010-2-033, IEC / EN 61010-031 for CAT IV 600V, CATIII 1000V Safety Standard Compliance IEC / EN 61326-1 IEC / EN 61243-3 Pollution Degree 2 Maximum Operating Altitude 2000m (6562ft) -15C to 30C, 80%RH Operating Temperature & Relative Humidity 30C to 40C, 75%RH 40C to 55C, 45%RH Storage Temperature -20 to +60C, 0 to 80% RH (no batteries) Temperature Coefficient 0.2 x (Specified accuracy) / C, < 18C, > 28C IP Rating IP65 Vibration Random Vibration per MIL-PRF-28800F Class 2 Drop Protection 4 feet drop to hardwood on concrete floor. Waranty 2 years Supplied with: IP2X test leads, batteries, belt cover. Optional accessories : Test leads : SA162 : Carrying Case : SC518 : SA162 SC523 Probes 2mm and 4mm belt cover FTSEFRAM70EN00 - Specifications can be updated without notice For assistance and ordering 32, rue Edouard Martel - BP55- 42009 - St Etienne - cedex 2 Tl. +33 (0) 4.77.59.01.01 Fax. +33 (0) 4.77.57.23.23 Web : www.sefram.fr - e-mail : sales sefram.fr Suivez-nous sur :
