6307H001 Sensata

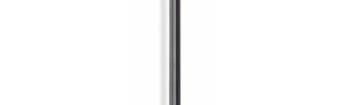

6300 Linear Potentiometer BEI Sensors 6300 Series of thick film conductive plastic sensors fit snugly into cylinders to provide highly accurate positioning information and are built rugged to operate in extreme environments. The 6300 Series is built with a proprietary conductive plastic resistive ink that is tough enough to withstand operating temperatures from -40 to +200C and pressures up to 35000 psi immersed in fluid. This linear potentiometer series is also well-suited for high velocity applications exceeding 2000mm/sec (hydraulic) or 5000mm/sec (pneumatic). To meet a wide variety of interface and mounting requirements, the 6300 Series is designed to be adaptable with a wide range of installation styles leadwires or connectors in pressure or non-pressure headers. This makes it ideal for applications requiring accurate performance with limited space such as in the automotive, medical, off-highway, oil and gas, marine and military industries. Mechanical Specifications Electrical Specifications Actuation Force: 0.56 Newtons max Electrical Travel: 50 to 965 mm Repeatability: Within 0.013mm Resistance: 80/mm Resistance Tolerance: +/-20% Power Rating at 70 C: 0.5 watts per 50mm of electrical travel (Derated to 0 watts at 125C) Output Smoothness: 0.1% of total applied voltage Insulation Resistance at 250VDC: 50 megaohms min. Resolution: Infinite Accuracy: Varies with length (.04% to 0.75%) Dielectric: 250VDC Operating Temperature: -40C to +125C (Available up to 200C) Dimensions Dimensions are in millimeters Notes Most specifications can be altered to meet specific requirements. Consult factory for details. Special Feature Examples: Temperature rating up to 200C Multiple mounting headers (pressure or non-pressure) Leads: Jacketed/Shielded cable 7230 Hollister Avenue Goleta, CA 93117 These commodities, technology or software if exported from the United States must be in accordance Specification No.: 6300-000 with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S. Tel: 805.968.0782 / 800.960.2726 Rev 1-29-15 law is prohibited. www.beisensors.com Page 1/1X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Slide Potentiometers category: Click to view products by Sensata manufacturer: Other Similar products are found below : M22 SS-4928 RSA0K11A901L RA6020F-10-20D1-B50K RA4520F-10-20D1-B50K X22205CAAF RSA0N11B9A03 448XC2103BDN K22208EAAG PS15-10PC1BR10K 3048L-2-503 MFP 211-N CDE23N-60-B10K CDE23N-60-B1K CDE23N-60-B50K 1825160-1 1825161-2 1825257-1 1825259-2 1825261-2 X22205AAAL PS100-2B1AR10K 1825255-5 PTA6044-2015CPB103 PTA6044-2015CPB104 PTA6044-2015CPA103 PTA6044-2015CPA104 PS100-1B1BR10K PTA3044-2015CPB504 RS15H113CA05 PS20-10PC1BR10K RS08U11AZ001 RA4520F-10-20D1-B1K PTL30-15R0-104B2 PTE60-202B-102B2 PTA6044-2015DPB103 RA6020F-10-20D1-B100K RA6020F-10-15F2-B2K RA4543F-20-15D1-B10K-01 RA3043F-20-10EB1-A100K RA6043F-20-10EB1-A5K RA6020F-10-20D1-B250K RA6020F-10-15F2-B5K RA6020F-10-15F2-B1K RA00B1MF-10-08T1-JISB10K-016 RA60K1F-10-13D1-B100K-011 RA3043F-20-10EB1- A50K RA4520F-10-20D1-B5K SX254 CDE23N-60-B5K
