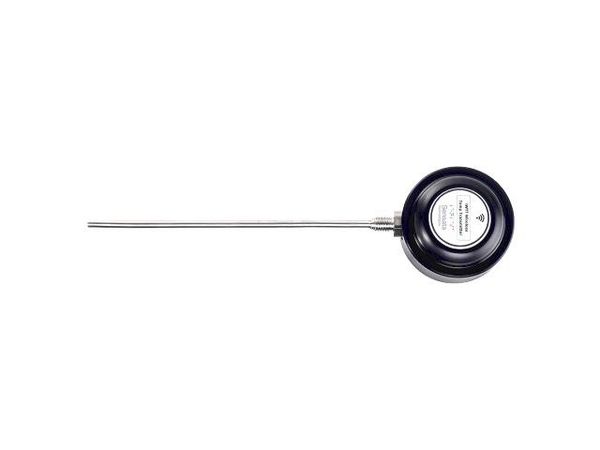

IWTT Series Industrial Wireless Temperature Transducer K or J Type Thermocouples PT100 RTD Sensors 6mm stainless steel sheath Up to 750m line-of-site range (depending on receiver) Five year battery life at 10 second transmission update rate Simple DIL switch pairing with the single or five channel receiver Single, five and multi-channel channel receivers available (up to 128) User-selectable transmission update rates Analogue, digital, RS232/485, Ethernet & USB receiver outputs Receiver clean contacts provide process alarm functions DESCRIPTION The IWTT Wireless Temperature Transducer is a cost effective replacement to a traditionally wired temperature transducer that offers the advantages of a low-cost installation in inaccessible and expensive installation environments. It is easily paired to any of the range of IWR receivers - thus offering a plug and play solution to your pressure measurement applications. TYPICAL APPLICATIONS INCLUDE:- The instrument uses either J or K type thermocouples or 3-wire RTD sensors fitted to an - Simple cable replacement installation acetal housing giving excellent media compatibility for the harshest of applications. dispense with expensive cable runs Compression fittings are available which allow the head to be orientated in the required - Environmental monitoring pumping stations, direction. sewage plants, water treatment - Facilities management boiler rooms, plant The IWPT sensor can be used with any of the IWR range of receivers. A line-of-sight hydraulics, plant pneumatics range of up to 750m is possible depending on the wireless receiver used (refer to specific - Asset monitoring tanks farms, process receiver datasheets for further information). plants, HVAC and building management - Service Contract temporary installation for Each device is temperature compensated, calibrated and supplied with a traceable servicing and field trials serial number. System Performance Transmitter Temperature Ranges Accuracy (Non-Linearity & Hysteresis) <0.1% / FS Standard products are factory configured as below:- Temperature Coefficent 500ppm/C J-Type 0 to 1200C K-Type 0 to 1200C RTD type -200 to +800C Instrument Power Source Transmitter Output Battery Type User replaceable Lithium C cell *Transmission Frequency 2.4 Ghz IEEE 802.15.4 Battery Life Five years at 10 second update Transmit Power 18 dBm rate System Channel User selectable via DIL switch Battery Shelf Life 10 years Antenna Integral 0dBi *Compliant with EN 300 328, V1.8.1 Cynergy3 Components Ltd. 7 Cobham Road, Ferndown Industrial Estate, Wimborne, Dorset, BH21 7PE, United Kingdom Telephone: +44 (0)1202 897969 Email: c3w sales sensata.com ISO9001C ER TI FI ED Made in the UK www.cynergy3.com cynergy3-iwtt-v4 2020 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.IWTT Series Industrial Wireless Temperature Transducer Material Specifications Environmental Conditions & Thermal Effects Probe sheath 316 Stainless Steel Media Temperature -200C to +1200C O ring seals Viton Op. /Ambient Temperature -20C to +50C Wireless Enclosure Material Acetal Storage Temperature -20C to +80C Weight 300g typical including battery Humidity 5% to 95% RH non-condensing **Installation position Any Thermal Span Shift <0.05% /C typical ** Consult installation manual to ensure adequate signal path between transmitter and receiver Mechanical Stability Receiver Output Signals Receiver Part Number Receiver Outputs See user manual IWR-1 1 off 4-20mA or 1-5Vdc and 1 Relay output Ordering Codes:- IWR-5 5 off 4-20mA or 1-5Vdc and 1 Relay output Temperature Transducer See table below IWR-USB Displays & Logs data on any PC running IWR-USB software IWR-PORT RS232 or RS485 or Ethernet MODBUS Communications. Spare battery IBAT-1 Up to 128 off analogue 4-20mA or Relay outputs can be Receivers - See IWR-1, IWR-5, IWR-PORT obtained by fitting extra ISOSLICE I/O modules and IWR-USB data sheets IoT-Gateway Built-in cellular modem allows all data to be sent to remote Five Channel Configuration Software IWR-Set (free download*) servers ***Transmission Update Rate 1, 5, 10, 20, 30, 60, 120 and 600 seconds *Download user configuration software here:- *** Consult installation manual for set-up:
