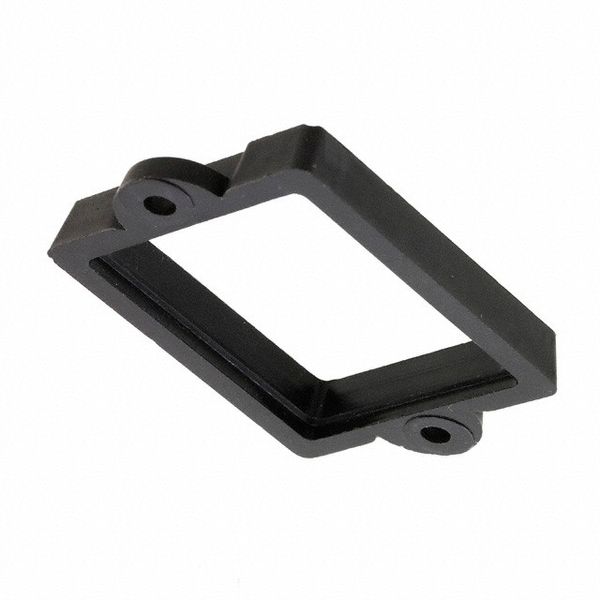

PCB Mount DataSheet LR Series DIP SSR Ratings to 40A 600 VAC with external heat sink SCR output for heavy industrial loads AC or DC control Zero-crossing (resistive loads) or random-turn-on (inductive loads) output Optional Mounting Clip Available (LMC-1) PRODUCT SELECTION Control Voltage 25A 40A 25A 40A 25A 40A 90-140 VAC LR600240A25 LR600240A40 LR1200480A25 LR1200480A40 LR1200600A25 LR1200600A40 180-260 VAC LR600240A25 LR600240A40 LR1200480A25 LR1200480A40 LR1200600A25 LR1200600A40 4-32 VDC LR600240D25 LR600240D40 LR1200480D25 LR1200480D40 LR1200600D25 LR1200600D40 AVAILABLE OPTIONS Blocking Voltage Control Voltage Switching Type D: DC Input Blank: Zero Voltage Turn-On 600: 600Vpk A: AC Input R: Instantaneous Turn-On 1200: 1200 Vpk Series LR 600 240 A 25 R -120 Operational Voltage Operational Current AC Control Range 25: 25 Amps 240: 24-280 VAC Blank: 4-32 VDC (DC Only) 40: 40 Amps 480: 48-530 VAC -120: 90-140 VAC (AC Only) -240: 180-260 VAC (AC Only) 600: 48-600 VAC Required for valid part number For options only and not required for valid part number (1) OUTPUT SPECIFICATIONS Description 25A 40A 25A 40A 25A 40A Operating Voltage Range (47-63Hz) Vrms 24-280 24-280 48-530 48-530 48-600 48-600 Transient Overvoltage Vpk 600 600 1200 1200 1200 1200 Maximum Off-State Leakage Current Rated Voltage mArms 0.1 0.1 0.1 0.1 0.1 0.1 Minimum Off-State dv/dt Maximum Rated Voltage V/sec (3) 500 500 500 500 500 500 Maximum Load Current Arms 25 40 25 40 25 40 Minimum Load Current Arms 0.15 0.15 0.15 0.15 0.15 0.15 Maximum Surge Non-Repetitive (16.6ms) Apk 250 400 250 400 250 400 Maximum On-State Voltage Drop Rated Current Vpk 1.6 1.6 1.6 1.6 1.6 1.6 Maximum I t for Fusing (8.33 msec) A sec 260 660 260 660 260 660 Maximum Thermal Resistance Junction to Ceramic Base 0.9C/W 0.7C/W 0.9C/W 0.7C/W 0.9C/W 0.7C/W Minimum Power Factor (with Maximum Load) 0.5 0.5 0.5 0.5 0.5 0.5 FDE-07-01 REV. A Do not forget to visit us at: www.crydom.com Copyright 2017 Crydom Inc. Specifications subject to change without notice.PCB Mount DataSheet (1) INPUT SPECIFICATIONS Description No Sufx -120 -240 Control Voltage Range 4-32 VDC 90-140 VAC 180-260 VAC Must Turn On Voltage 4.0 VDC 90 VAC 180 VAC Must Turn Off Voltage 1.0 VDC 10 VAC 10 VAC Typical Input Current (5)(6) 9 mADC 15 11 Maximum Turn-on Time msec (4) 1/2 Cycle 10 10 Maximum Turn-Off Time msec 1/2 Cycle 40 40 (1) GENERAL SPECIFICATIONS Description Parameters Dielectric Strength, Input/Output/Base (50/60Hz) 2500 Vrms 9 10 Ohm Minimum Insulation Resistance ( 500 VDC) Maximum Capacitance, Input/Output 8 pF Ambient Operating Temperature Range -30 to 80 C Ambient Storage Temperature Range -30 to 125 C Weight (typical) 0.5 oz. (14.4 gr) Encapsulation Thermally Conductive Epoxy GENERAL NOTES (1) All parameters at 25C and per section unless otherwise specied. (2) Dielectric and insulation resistance are measured between input and output. (3) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1 (4) Turn-on time for random Switching models is 0.1 ms. (5) DC input circuity incorporates active current limiter. (6) Use sufx -120 for 120 VAC control and -240 for 240 VAC control. (7) LMC-1 Mounting Maximum Screw Torque is 10 in-lb/1.12 Nm MECHANICAL SPECIFICATIONS Tolerances: 0.02 in / 0.5 mm All dimensions are in: inches millimeters 1.38 35.0 1.0 25.4 0.78 1.12 19.8 28.4 0.50 TYP. 1.2 0.50 0.39 12.7 9.8 0.25 6.3 Do not forget to visit us at: www.crydom.com Copyright 2017 Crydom Inc. Specifications subject to change without notice.
