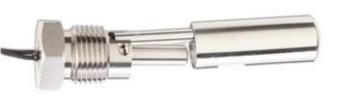

SSF212 SERIES COMPACT EXTERNAL FITTING VIA 1/2NPT THREAD The SSF212 series are horizontally mounted switches that are fitted via a 1/2NPT thread from the outside of the tank, so does not require access to the inside of the tank. These are manufactured in SS 304 & 316 and will work in liquids of SG 0.8 minimum. The switch action may be reversed by mounting the device with the orientation arrow pointing downwards, instead of the normal upwards direction. These are available with either 100cm flying lead, DIN 43650 plug & socket or M12 round connection. Cable sets are available for use with M12 connection versions. Features External fitting via 1/2NPT thread SS 316 float Compact switch design High Temperature version available (180C) User configurable N/O (make on rise) or N/C (make on fall) SPECIFICATIONS Technical Electrical External N/O (N/C) Mounting Style Contact Form 1/2NPT Mounting Thread Switching Power Max VA 50 316 & 304 grade SS V 300 (SSF212XPM12 = 240Vac) Float & Stem Material Switching Voltage AC Max Maximum Temperature 120C (H version 180C) Switching Voltage DC Max V 300 (SSF212XPM12 = 200Vdc) 5 bar Maximum Pressure Switching Current Max A 0.5 0.7 Float SG All ratings are for resistive load only. 0.8 Minimum Fluid SG Cable Length - Standard 100cm or plug Cable Size 17/0.10 - AWG22 Tinned copper Cable Conductor Material XLPE Cable Sheath Material 125C Cable Temperature Rating Sealing Gasket Not supplied 2.0kg/cm Tightening Torque for Fixing Nut Page 1 Copyright 2021 Sensata Technologies, Inc. www.sensata.comSTANDARD PARTS Float Material Stem Material Max Power Leadouts SSF212X100 SS 316 SS 304 50VA 100cm XLPE 17/0.1 SSF212X100H SS 316 SS 304 50VA 100cm XLPE 17/0.1 SSF212XPL SS 316 SS 304 50VA Plug & Socket SSF212XPM12 SS 316 SS 304 50VA M12 4-pin socket Custom versions can be made for particular applications. Please contact Sensata with your requirements. DIMENSIONS All dimensions are in millimeters. Page 2 Made in the UK Sensata Technologies, Inc. (Sensata) data sheets are solely intended to assist designers (Buyers) who are developing systems that CONTACT US incorporate Sensata products (also referred to herein as components). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyers systems and products. Sensata data sheets have +44 (0)1202 897969 been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that c3w sales sensata.com specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, Cynergy3 Components Ltd. improvements and other changes to its data sheets or components without notice. 7 Cobham Road, Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO Ferndown Industrial Estate, OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND Wimborne, Dorset, NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS BH21 7PE, United Kingdom ARE PROVIDED AS IS. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensatas terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright 2021 Sensata Technologies, Inc. ISO9001CERTIFIED Rev: Cynergy3-ssf212-v4 03/09/21 www.sensata.com
