X-On Electronics has gained recognition as a prominent supplier of SW-74 Pushbutton Switches across the USA, India, Europe, Australia, and various other global locations. SW-74 Pushbutton Switches are a product manufactured by Shinmei. We provide cost-effective solutions for Pushbutton Switches, ensuring timely deliveries around the world.

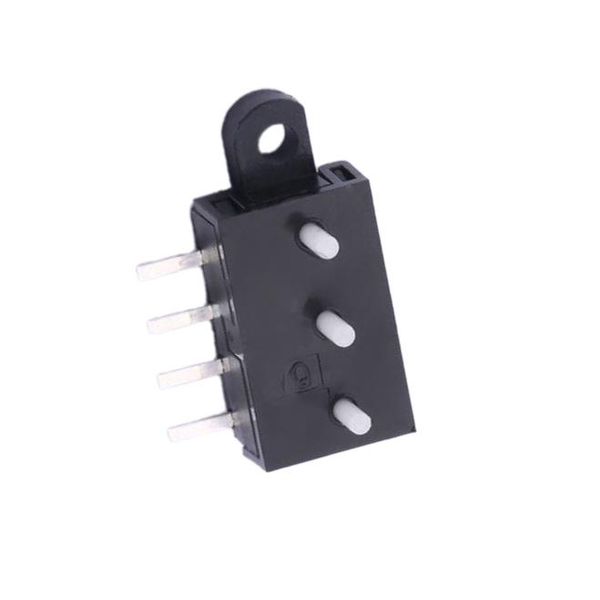

SW-74 Shinmei

Name: SW-74
Brand: Shinmei
SKU: SW74_Shinmei
Availability: OutOfStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	SW-74
Manufacturer:	Shinmei
Category:	Pushbutton Switches
Description:	No lock Lying 25gf 100V 100V 50mA Plugin Push Switches ROHS
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.6001 ea
Line Total: USD 0.6

Availability - 0

MOQ: 1 Multiples: 0
Pack Size: 0

SW-74 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 07 Jan to Fri. 10 Jan MOQ : 1 Multiples : 0	1 : USD 0.6001 10 : USD 0.5349 30 : USD 0.5031 100 : USD 0.4107 500 : USD 0.3917 1000 : USD 0.3821

Specifications

Manufacturer Shinmei Shinmei
Product Category Pushbutton Switches Pushbutton Switches
Voltage Rating AC 100 V 100 V
Voltage Rating DC 100 V 100 V
Mounting Style Lying Lying
IP Rating - -
Package PLUG in PLUG in
Rohs y y
Actuator Style CircularPlunger CircularPlunger
Self Lock / No Lock No lock No lock
Circuit - -
Operating Force 25gf 25gf
Insulation Resistance 50 MOhms 50 MOhms
Mechanical Life - -
Pin Style Solder Lug Solder Lug
Operating Temperature - -
Actuator/Cap Color White White
Contact Current 50 mA 50 mA

We are delighted to provide the SW-74 from our Pushbutton Switches category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the SW-74 and other electronic components in the Pushbutton Switches category and beyond.

HS Compliance

Tariff Desc

8536.50.99 9900975 SWITCHES being ANY of the following
a toggle 240VAC current capacity NOT exceeding 3A
b toggle 28VDC current capacity NOT exceeding 3A
c toggle 125VAC current capacity NOT exceeding 6A
d toggle 250VAC current capacity NOT exceeding 6A
e toggle 12VDC current capacity NOT exceeding 16A
f push button max 250VAC current capacity NOT exceeding 1A
g rocker 12VDC current capacity NOT exceeding 30A
h rocker 250VAC current capacity NOT exceeding 10A
i rocker max 250VAC current capacity NOT exceeding 6A
j numeric keypad
k 4-way 100VAC 0.5A OR 25V DC1A
l push button 100VAC 0.5A OR 25VDC 1A
m micro OR mini-micro max 250VAC current capacity NOT exceeding 10A
n knife 50VDC
o mercury 24VDC current capacity NOT exceeding 2A

8536.50.99 9804137 SWITCHES PRINTED CIRCUIT BOARD surface-mount OR through-hole having BOTH of the following
a current rating NOT exceeding 100mA
b voltage rating NOT exceeding 50VAC OR DC

8536.50.99 17109836 SWITCHES PUSH BUTTON panel mount

8536.50.99 9304006 SWITCHES push button illuminated being ANY of
a square
b rectangular
c circular

8536.50.99 1798512 SWITCHES ELECTRICAL having ALL of the following
a length NOT greater than 3cm
b width NOT greater than 2cm
c maximum electric current capacity greater than 11A

8536.50.99 1108450 SWITCHES LIMIT hunting tooth rotating shaft

8536.50.99 17119033 SWITCHES ROCKER panel mounting

8536.50.99 702118 SWITCHES ELECTRIC ROTARY

8536.50.99 1799019 SWITCHES SLIDE being ANY a power switches
i voltage selector
ii two position

8536.50.99 1779783 SWITCHES foot operated having a voltage of NOT less than 230VAC

8536.5 8438589 SWITCHES hall effect magnetically operated

8536.50.99 1812211 SWITCHES PUSHBUTTON mushroom OR dome shaped

8471.60.00 91 Joystick Free

8531.80.00 Electric sound or visual signalling apparatus eg bells, sirens, indicator panels, burglar or fire alarms Other apparatus Free

8541.40.00 54 LED displays Free
